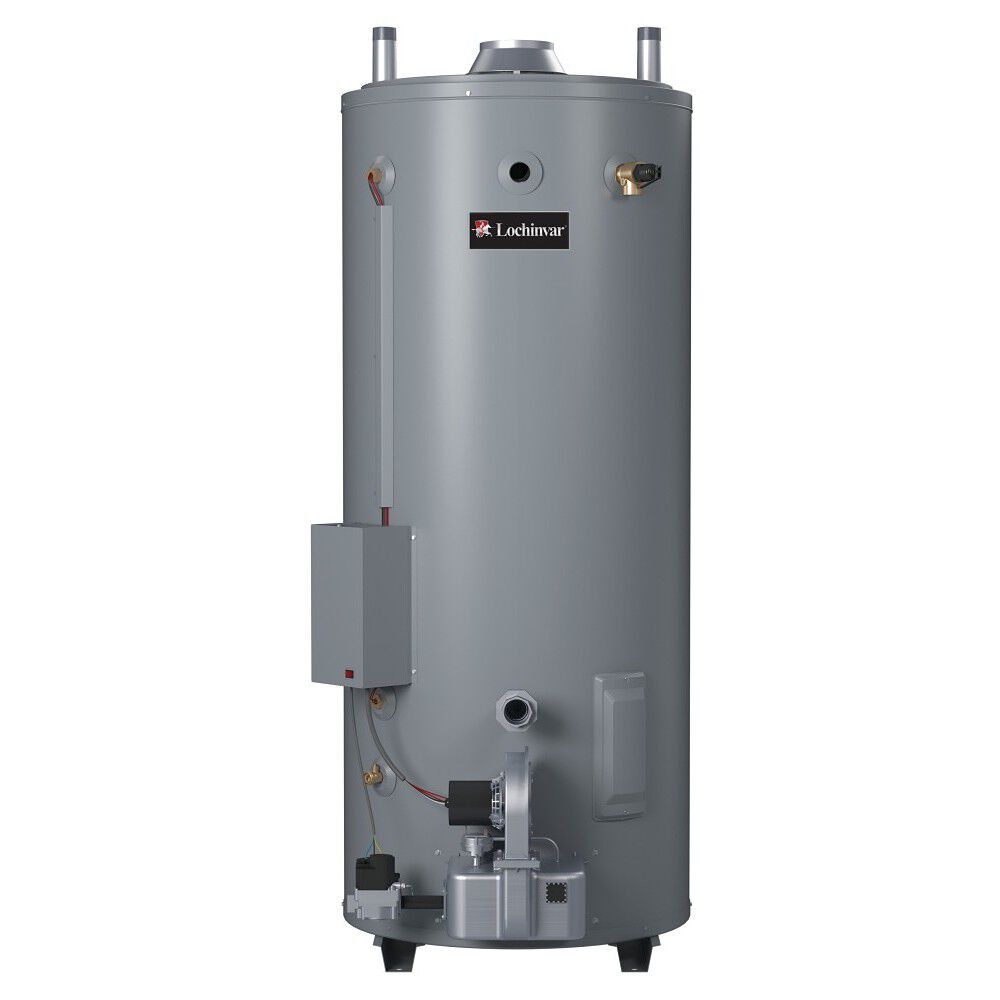

Product Details
- Fan assisted combustion is built into the Low NOx burner assembly and complies with California SCAQMD Rule 1146.2
- Stainless steel air flapper is used inside the premix system to replace externally mounted flue damper to minimize the standby heat loss
- Rated Category I appliance, uses standard double wall type “B” vent
- Inlet/outlet connections located top, front and rear for greater installation flexibility
- Glass lining provides super protection against corrosion
- Anode rods with stainless steel core provide additional corrosion protection
- Intermittent electronic ignition eliminates standing pilot, saving energy
- Self-cleaning system reduces sediment build-up, maintaining rated thermal efficiency and reducing water heating costs (operates when cold water is connected through front)
- Fully automatic digital controls includes safety shutoff feature
- 3-year limited tank and 1-year limited parts warranty
All models feature top, front and rear water connection options to make retrofit applications as easy as possible. The design incorporates a standard one-pass multi-flue design. This traditional flue design is time tested and will provide years of trouble-free service life.
Specifications
Tech Specs
Nominal Gallon Capacity
100 Gallons
Rated Storage Volume
95.1 Gallons
Thermal Efficiency
80%
Maximum BTUs
250.000
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Size
1.5"
Emissions
Ultra-Low NOx
ASME Certified
Yes
ASME Stamp
HLW
Amperes
5
Destination Country
US
Flue Diameter
2,00
Fuel Source
NATURAL
Height to T&P
60,75
Installation Type
INDOOR
Application
COMMERCIAL
Shipping Height
83.5"
Shipping Length
42.5"
Shipping Width
37.75"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
73"
Diameter
27.75 in."
Shipping Weight
800 lbs
Height to Gas Valve
6"
Vent Material
Steel
