Product Details
- Designed for light duty commercial applications
- Dual 6100-watt zinc plated copper sheathed elements
- Thermostat is adjustable through a range of 120º to 181ºF with a manual reset high temperature cutoff
- Anode rods with stainless steel core provide additional corrosion protection
- Enhanced-flow commercial-grade brass drain valve designed for durability, ease of maintenance & operation
- Meets the standby loss requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1
- 6-year limited tank and 1-year limited parts warranty

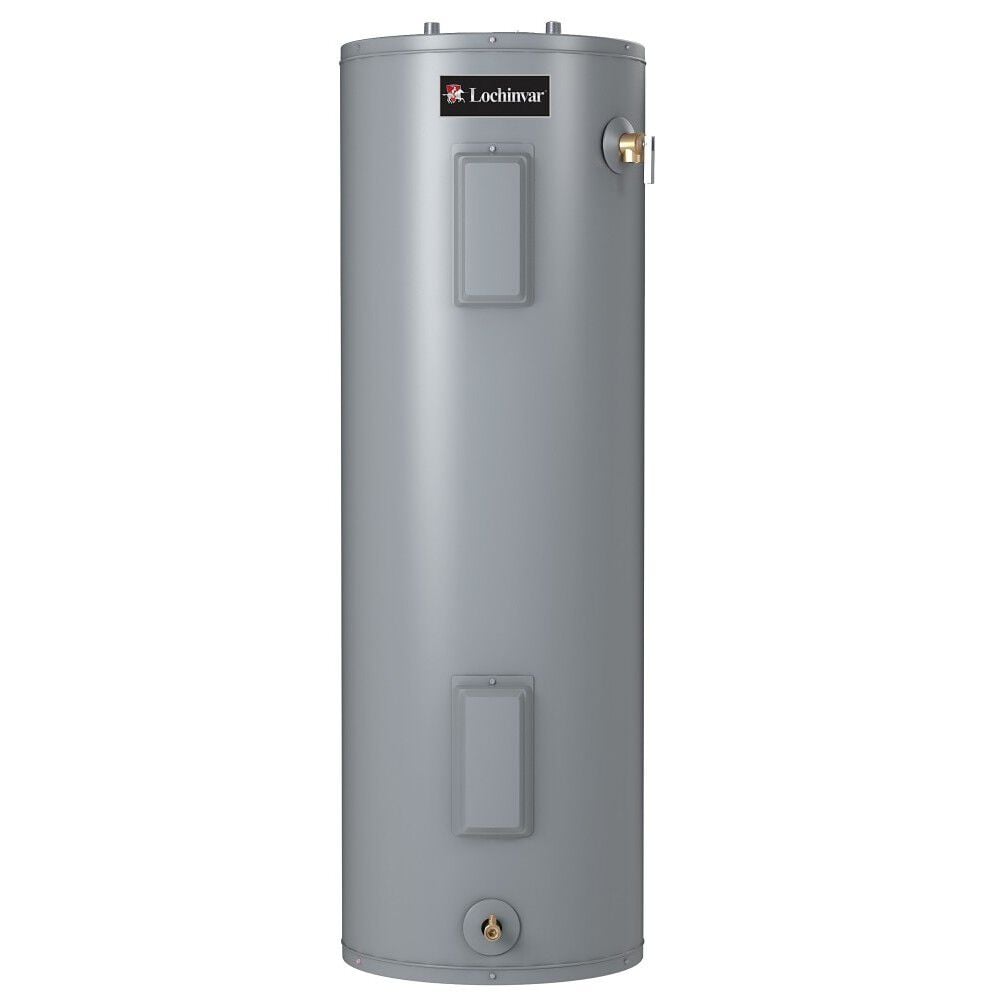

Light-Service commercial electric water heaters are designed for light duty commercial applications with intermittent hot water loads.
Specifications
Tech Specs
Nominal Gallon Capacity
119 Gallons
Rated Storage Volume
108 Gallons
Thermal Efficiency
98%
Power Source
ELECTRIC
Limited Tank Warranty
6 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
ASME Certified
No
Amperes
44.04
Blanket Included
No
Destination Country
US
Height to T&P
54,50
Installation Type
INDOOR
Max Wattage
12.200
Number of Elements
2
Application
COMMERCIAL
Shipping Height
65.69"
Shipping Length
32"
Shipping Width
29"
Side Loop
No
Voltage
277
Dimension & Venting
Type
Water Heater
Height
61.5"
Diameter
28 in."
Width
28"
Shipping Weight
268 lbs
