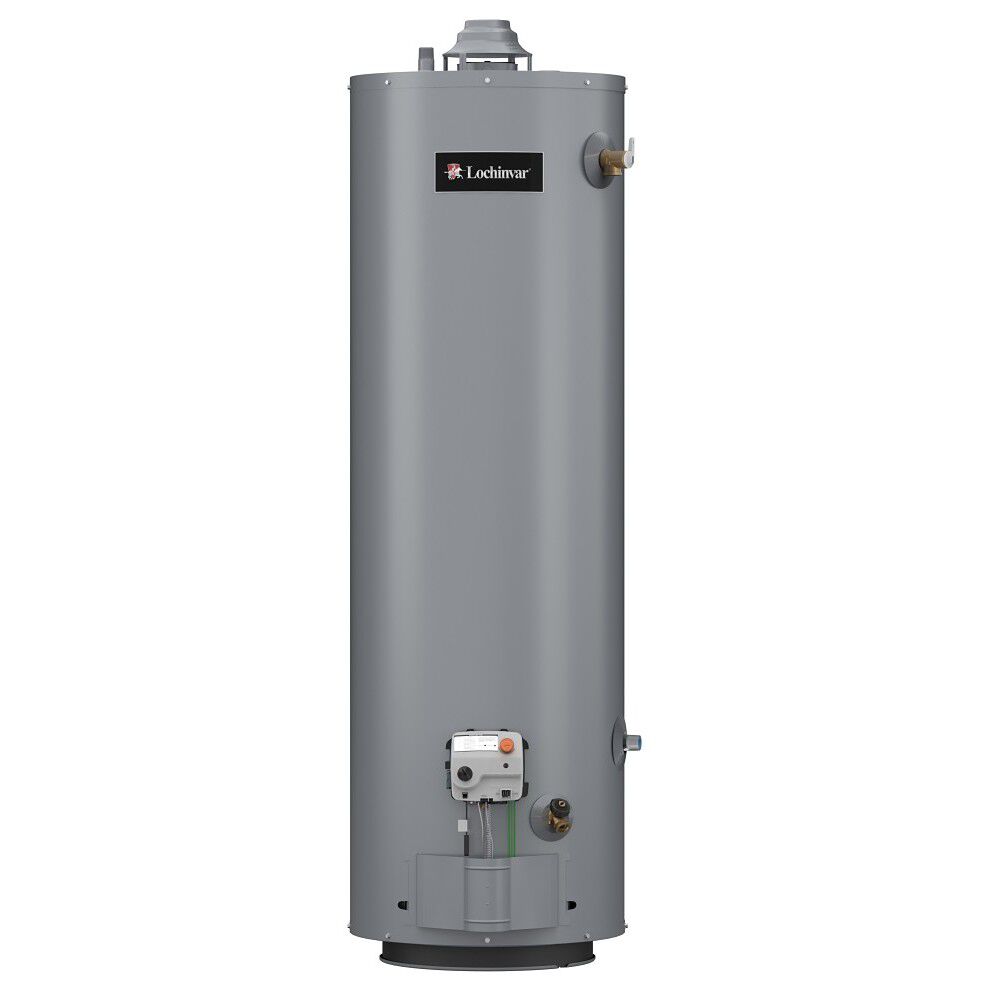

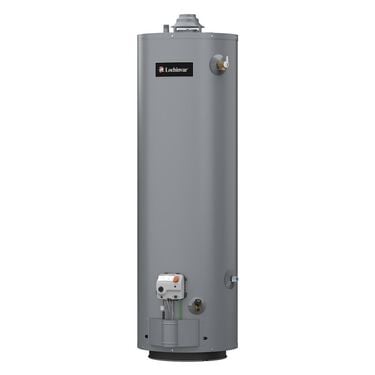

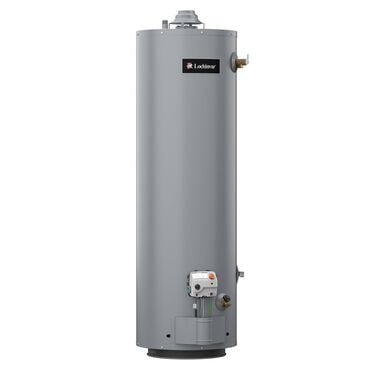

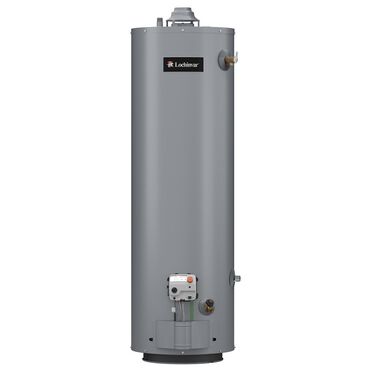

40-Gallon Mobile Home Atmospheric Vent Natural Gas Water Heater

Model MFN04035 400
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Blanket

  • Delivers 59-gallon first hour rating
  • HUD compliant, approved for mobile homes/manufactured housing
  • Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • 40-Gallon Mobile Home Atmospheric Vent Natural Gas Water Heater
    Model MFN04035 400
    Product Details
    • Delivers 59-gallon first hour rating
    • HUD compliant, approved for mobile homes/manufactured housing
    • Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Gas control convertible for natural and propane gas to meet manufactured housing installation flexibility needs
    • 3/4" top water outlet connections and a 3/4" side inlet connections
    • Glass tank lining protects against corrosion
    • Automatic cleaning system protects against sediment build-up
    • Stainless steel tank saver anode rod protects against corrosion longer than ordinary anodes
    • 6-year limited tank and parts warranty

    • The 40-Gallon Mobile Home Atmospheric Vent Natural Gas Water Heater is convertible for propane and natural gas and is designed and to meet a wide range of needs of Manufactured Housing installations.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.58
    Maximum BTUs
    35.500
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    2 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    BOTH
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    59 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4,00
    Fuel Source
    NATURAL
    Height to Gas Valve
    13,25
    Height to T&P
    51,75
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Mobile Home Compatible
    true
    Application
    RESIDENTIAL
    Shipping Height
    61.5"
    Shipping Length
    26"
    Shipping Width
    23"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    58.25"
    Diameter
    20 in."
    Shipping Weight
    140lbs
    Vent Type
    Atmospheric Vent
