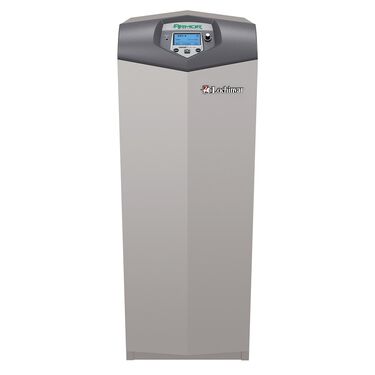

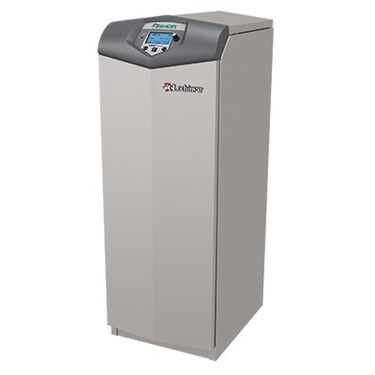

ARMOR® Floor Mount Commercial Condensing Water Heater

Model AWL151PM
Maximum BTU's
Fuel Source

  • 150,000 BTU/HR
  • 96% Thermal Efficiency
  • 7 Venting Options for Maximum Flexibility

    •
    ARMOR® Floor Mount Commercial Condensing Water Heater
    Model AWL151PM
    Find a Local Pro
    Find a Local Pro
    Product Details
    • 150,000 BTU/HR
    • 96% Thermal Efficiency
    • 7 Venting Options for Maximum Flexibility
    • 5:1 Turndown Ratio
    • Condensing Stainless Steel Heat Exchanger
    • SMART SYSTEM™ Operating Control
    • CON·X·US® Remote Connect Capable
    • Stainless Steel Circulating Pump
    • Built in Cascading Sequencer for up to 8 Water Heaters
    • *150,000 and 199,000 BTU/hr Models Available in Canada

      • With ARMOR, you can match one or more water heaters with inputs ranging from 150,000 to 285,000 with one or more storage tanks in a wide variety of sizes.

    Specifications
    Tech Specs
    Maximum BTUs
    150,000
    Power Source
    GAS
    Limited Parts Warranty
    1 Years
    Water Connection Location
    SIDE
    Emissions
    Low NOx
    ASME Certified
    No
    Destination Country
    US
    Flue Diameter
    3.00
    Fuel Source
    PROPANE
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    5 Years
    Minimum BTUs
    30,000
    Application
    COMMERCIAL
    Shipping Height
    42"
    Shipping Length
    31"
    Shipping Width
    26"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    176 lbs
    Vent Type
    Direct Vent
    Product Literature
    Sales Brochures
    Sales Brochure - Armor (AWN151PM-AWN286PM) Brochure pdf-link
    Sales Brochure - Armor (AWN151PM-AWN286PM) Brochure French pdf-link
    Sales Brochure - Armor Floor Mount (AWN151PM-AWN801PM)Brochure OUT OF PRODUCTION pdf-link
    Submittals
    Submittal Sheet - ARMOR AWN151PM-AWN801PM Submittal OUT OF PRODUCTION pdf-link
    Submittal Sheet - Armor AWN151PM-AWN286PM Submittal pdf-link
    Submittal Sheet - Armor AWN151PM-AWN286PM Submittal French pdf-link
    Submittal Sheet - Armor AWN151PM-AWN286PM Package System Submittal pdf-link
    Submittal Sheet - Armor AWN151PM-AWN286PM Package System Submittal French pdf-link
    Submittal Sheet - ARMOR AWN151PM-AWN801PM Package System Submittal - Out of Production pdf-link
    Submittal Sheet - Condensate Neutralization Kit Submittal pdf-link
    Submittal Sheet - Condensate Neutralization Kit Submittal French pdf-link
    Submittal Sheet - Stack Frame Submittal pdf-link
    Submittal Sheet - Stack Frame Submittal French pdf-link
    Typical Specification
    Typical Specification - Armor AWN151PM-AWN286PM Typical Specification pdf-link
    Typical Specification - Armor AWN151PM-AWN286PM Typical Specification French pdf-link
    Typical Specification - ARMOR AWN151PM-AWN801PM Typical Specification OUT OF PRODUCTION pdf-link
    Product Summary
    Product Summary - Armor AWN151PM-AWN286PM Product Summary pdf-link
    Product Summary - Armor AWN151PM-AWN286PM Product Summary French pdf-link
    Product Summary - Armor AWN151PM-AWN801PM Product Summary - Out of Production pdf-link
    Manuals
    Manual - Armor Floor Mount - All Models - ConXus Remote Connect (Wi-Fi with Ethernet) I & O Manual - English pdf-link
    Manual - Armor Floor Mount - All Models - I&O Manual - English pdf-link
    Manual - Armor Floor Mount - All Models - Service Manual - English pdf-link
    Manual - Armor Floor Mount - All Models - I&O Manual French Canadian pdf-link
    Manual - Armor Floor Mount - All Models - ConXus Remote Connect (Wi-Fi) I & O Manual - English pdf-link
    Manual - Armor Floor Mount - All Models - ModBus and BacNet Manual - English pdf-link
    Manual - Armor Floor Mount - All Models - Field Server Gateway Guide - English pdf-link
    Manual - Armor Floor Mount - All Models - Smart System PCII Software Manual - English pdf-link
    Parts Sheet
    Parts List - ARMOR AWN151-286 Part Sheet pdf-link
    In The Box Sheets
    In The Box Sheets - AWN151PM-200PM In The Box Sheet pdf-link
    In The Box Sheets - AWN286PM In The Box Sheet pdf-link
    In The Box Sheets - AWN400PM In The Box Sheet pdf-link
    In The Box Sheets - AWN501PM-601PM In The Box Sheet pdf-link
    In The Box Sheets - AWN701PM-801PM In The Box Sheet pdf-link
    Plan View Drawings
    Plan View Drawings - AWN151 Plan View Drawing pdf-link
    Plan View Drawings - AWN200 Plan View Drawing pdf-link
    Plan View Drawings - AWN286 Plan View Drawing pdf-link
    Plan View Drawings - AWN400 Plan View Drawing pdf-link
    Plan View Drawings - AWN501 Plan View Drawing pdf-link
    Plan View Drawings - AWN601 Plan View Drawing pdf-link
    Plan View Drawings - AWN701 Plan View Drawing pdf-link
    Plan View Drawings - AWN801 Plan View Drawing pdf-link
    Revit Product Drawings
    Revit Product Drawings - AWN151-200 Revit Product Drawing pdf-link
    Revit Product Drawings - AWN286-801Revit Product Drawing pdf-link
    Start Up Forms
    Start-Up Forms - Start Up Form pdf-link
    Start-Up Forms - Start Up Form - French pdf-link
    Pump Curves
    Pump Curves - Armor Pump Curves pdf-link
    Archive
    Archive-I&O Manuals - ARMOR (AWN150-800) I&O Manual pdf-link
    Archive-I&O Manuals - Armor Floor Mount (AWN151-801) - I&O Manual - English pdf-link
    Archive-I&O Manuals - Armor Floor Mount (AWN151-801) - I&O Manual - French pdf-link
    Archive-Service Manuals - ARMOR (AWN150-800) Service Manual pdf-link
    Archive-Service Manuals - Armor Floor Mount (AWN151-801) - Service manual pdf-link
    Archive-Parts Sheets - ARMOR (AWN150-800) Parts Sheet pdf-link
    Archive-Parts Sheets - Armor Floor Mount (AWN151-801) - Replacement Parts List pdf-link
    Warranty
    Warranty Sheet - Commercial Water Heater Warranty pdf-link
    Warranty Sheet - Commercial Water Heater Warranty Explanation pdf-link
    Warranty Sheet - Commercial Water Heater Warranty - French pdf-link
