Product Details
- Delivers 67-gallon first hour rating
- 40,000 BTU input atmospheric vent design delivers up to 0.58 Uniform Energy Factor
- Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
- Push-button piezo ignitor makes lighting pilot fast & easy
- Intelligent electronic gas control provides precise temperature control and LED status indicator
- Glass tank lining protects against corrosion
- Automatic cleaning system protects against sediment build-up
- Stainless steel anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- 6-year limited tank and parts warranty

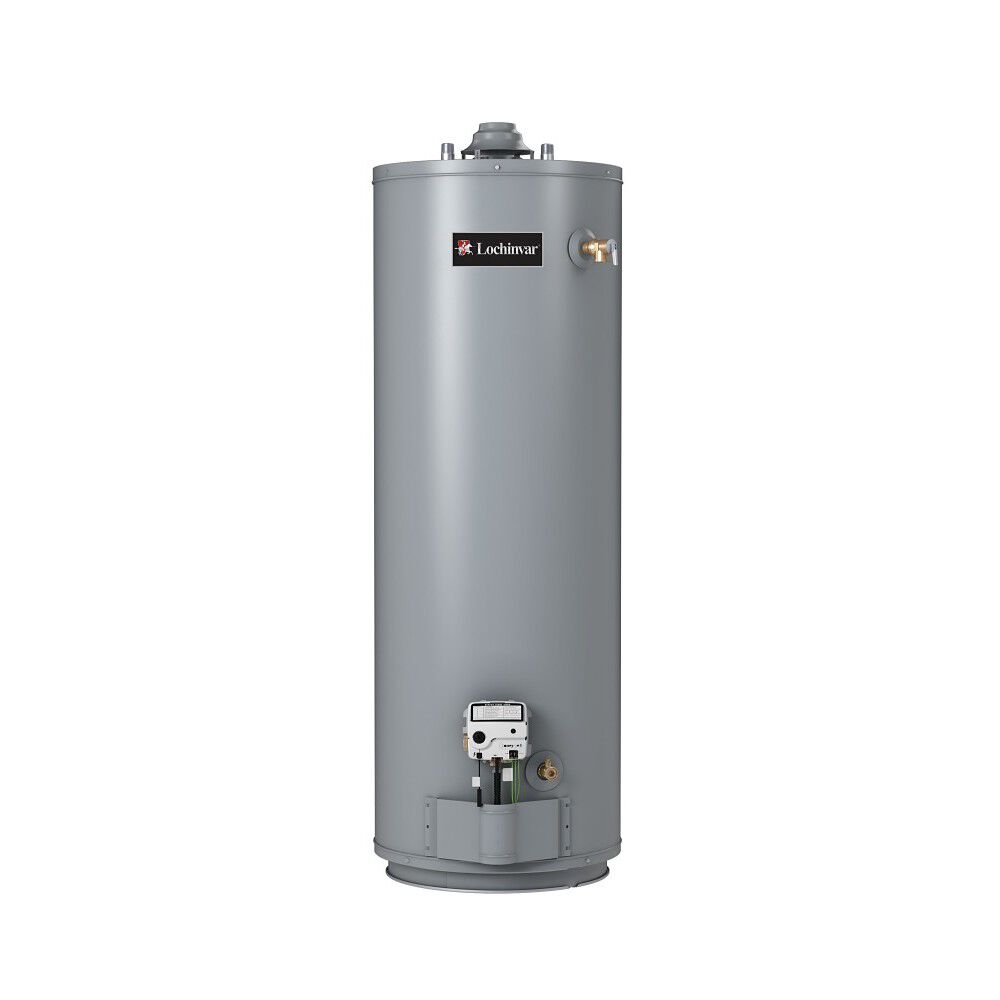

40-Gallon Atmospheric Vent Short Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value.
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
38 Gallons
UEF
0.57
Maximum BTUs
40,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
First Hour Rating
68 Gallons
ASME Certified
No
Blanket Included
Yes
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to Gas Valve
12.50
Height to T&P
41.25
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
51.31"
Shipping Length
26.63"
Shipping Width
21.13"
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
47.75"
Diameter
20 in."
Shipping Weight
134lbs
Vent Type
Atmospheric Vent
