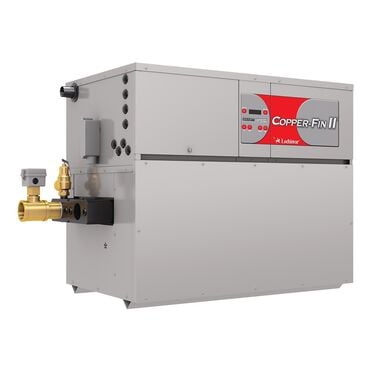

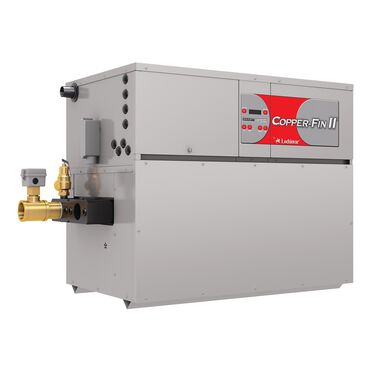

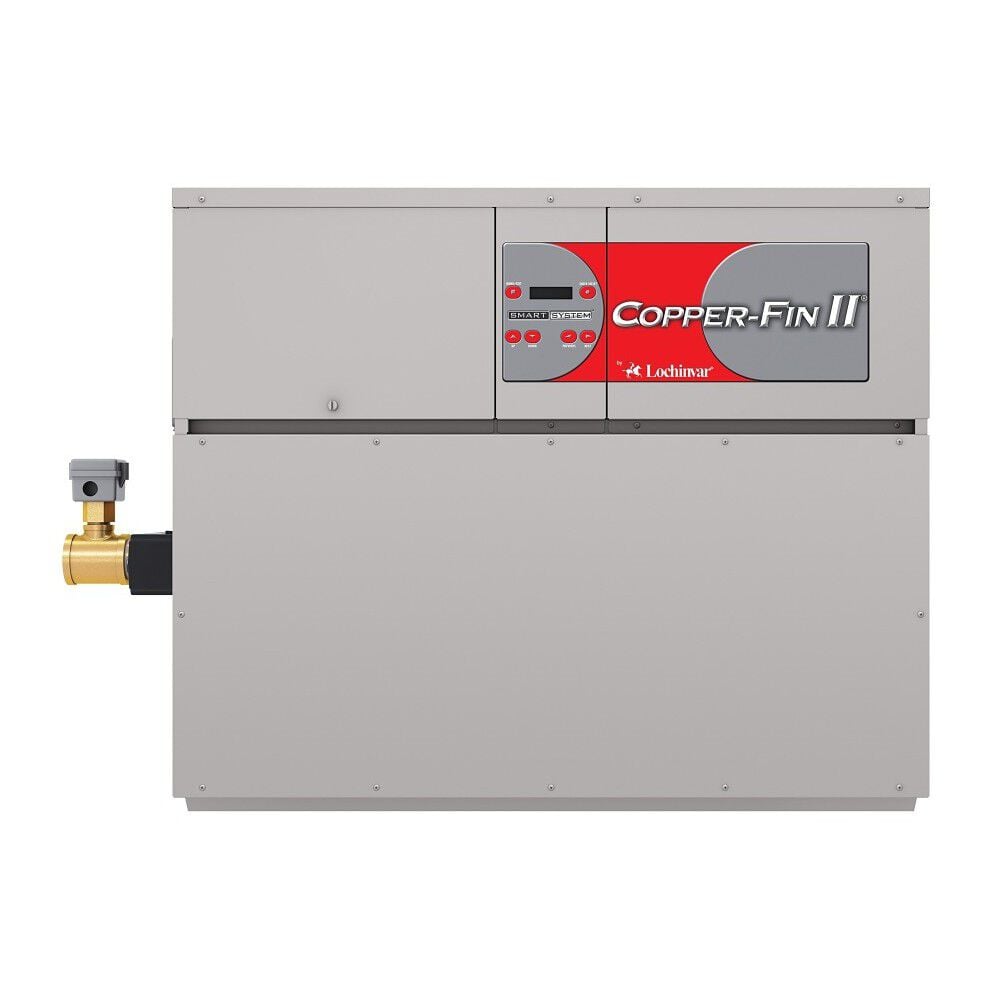

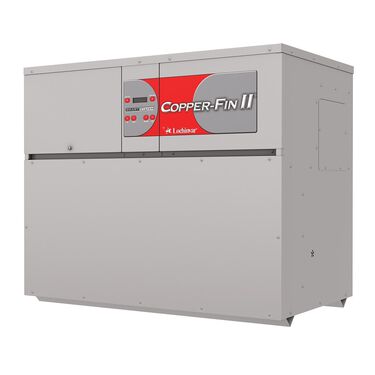

Copper-Fin II Water Heater

Model CFN0502PM
Fuel Source
Maximum BTU's

  • 500,000 Btu/Hr Input
  • Proportional Firing Up to 4:1 Turndown Ratio
  • SMART SYSTEM Operating Control with Built-In Cascade Sequencer

    •
    Copper-Fin II Water Heater
    Model CFN0502PM
    Find a Local Pro
    Find a Local Pro
    Product Details
    • 500,000 Btu/Hr Input
    • Proportional Firing Up to 4:1 Turndown Ratio
    • SMART SYSTEM Operating Control with Built-In Cascade Sequencer
    • 85% Thermal Efficiency
    • Gasketless Copper-Finned Tube Heat Exchanger
    • 160 PSI Working Pressure
    • 5-Yr. Limited Warranty

      • Copper-finned tube, non-condensing appliances are the foundation of Lochinvar’s success. In 1993, Lochinvar introduced the Copper-Fin II, the first horizontal chassis, copper-finned tube water heater to operate with fan-assisted combustion. Now, the Copper-fin II is even better. Along with high thermal efficiency, gasketless heat exchangers and multiple venting options we have added Lochinvar’s exclusive SMART SYSTEM™ control.

    Specifications
    Tech Specs
    Maximum BTUs
    500,000
    Power Source
    GAS
    Limited Parts Warranty
    1 Years
    ASME Certified
    Yes
    ASME Stamp
    H
    Destination Country
    US
    Fuel Source
    NATURAL
    Limited Heat Exchanger Warranty
    5 Years
    Minimum BTUs
    250,000
    Application
    COMMERCIAL
    Shipping Height
    41"
    Shipping Length
    27"
    Shipping Width
    60"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Shipping Weight
    468 lbs
