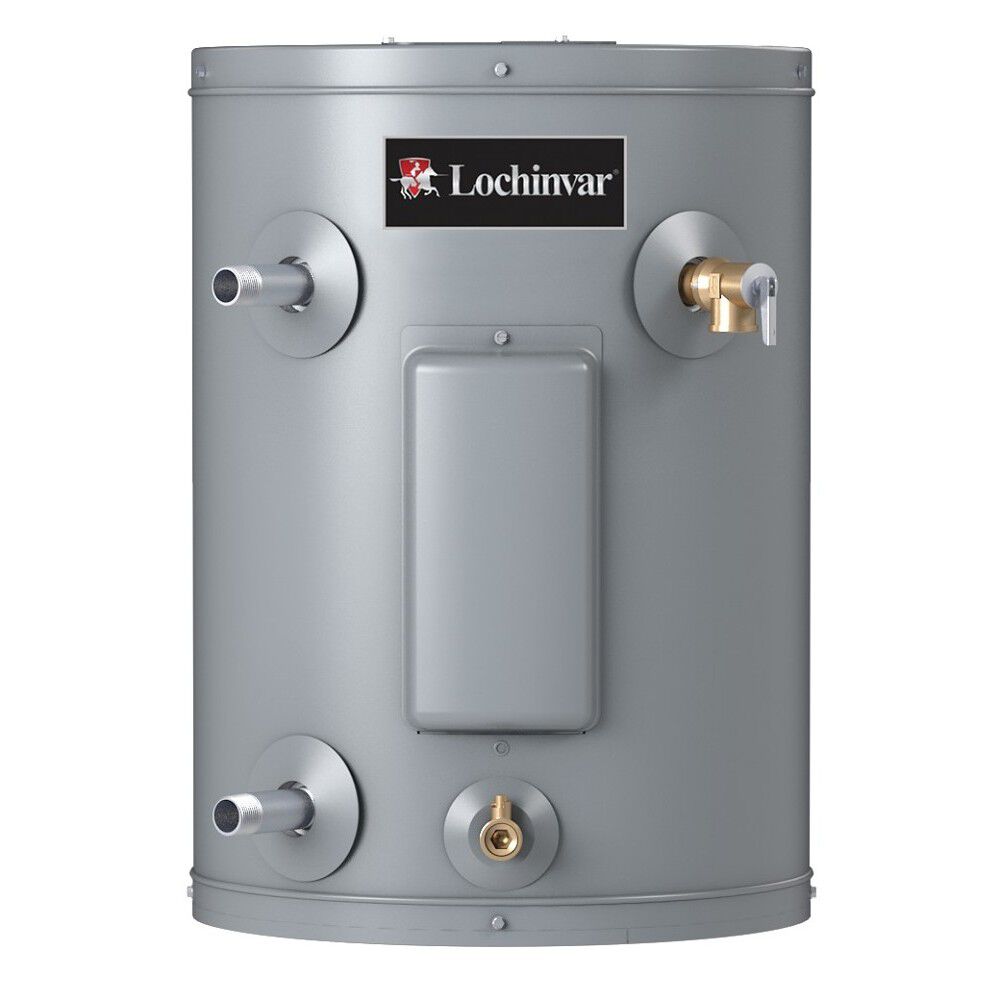

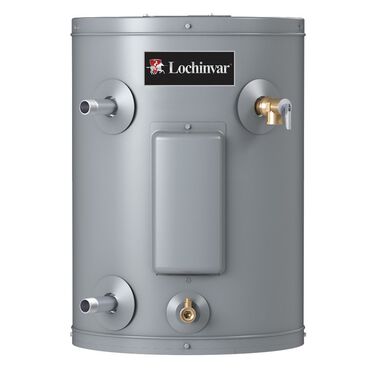

6-Gallon Specialty Compact Junior Electric Water Heater

Model JER-06 200
Capacity (Gallons)
Max Wattage

  • Delivers 8-gallons per hour recovery rate
  • Single 1,650-watt commercial-grade heating element delivers reliable and efficient hot water
  • Compact design side connections is ideal for installation under a counter, in a crawl space or in other tight spaces
  • 6-Gallon Specialty Compact Junior Electric Water Heater
    Model JER-06 200
    Product Details
    • Delivers 8-gallons per hour recovery rate
    • Single 1,650-watt commercial-grade heating element delivers reliable and efficient hot water
    • Compact design side connections is ideal for installation under a counter, in a crawl space or in other tight spaces
    • Durable glass tank lining protects against corrosion
    • Automatic cleaning system protects against sediment build-up
    • Tank saver anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • HUD compliant, approved for mobile homes and manufactured housing
    • 6-year limited tank and parts warranty

    • The Compact Junior electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    6 Gallons
    Rated Storage Volume
    6 Gallons
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    No
    Emissions
    Low NOx
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    10.75
    Installation Type
    INDOOR
    Max Wattage
    1,650
    Application
    RESIDENTIAL
    Shipping Height
    17.61"
    Shipping Length
    17.93"
    Shipping Width
    17.19"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    15.25"
    Diameter
    14 in."
    Width
    14.25"
    Shipping Weight
    35lbs
