Product Details
- Delivers 11-gallons per hour recovery rate
- Single 2,500-watt commercial-grade heating element delivers reliable and efficient hot water
- Compact design side connections is ideal for installation under a counter, in a crawl space or in other tight spaces
- Durable glass tank lining protects against corrosion
- Automatic cleaning system protects against sediment build-up
- Tank saver anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
- HUD compliant, approved for mobile homes and manufactured housing
- 6-year limited tank and parts warranty

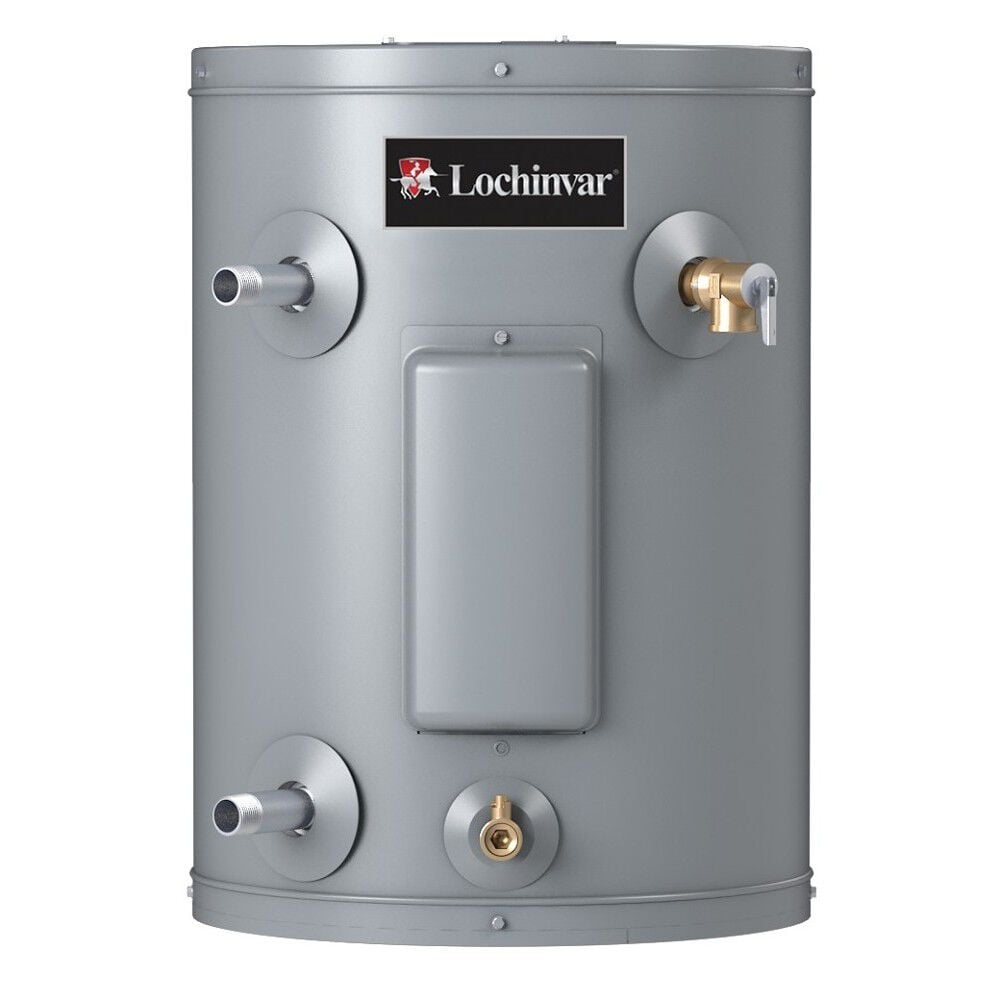

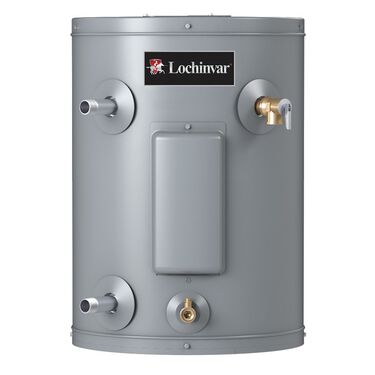

The Compact Junior electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces.
Specifications
Tech Specs
Nominal Gallon Capacity
19 Gallons
Rated Storage Volume
17 Gallons
Power Source
ELECTRIC
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
No
Water Connection Location
BOTH
Emissions
Low NOx
ASME Certified
No
Blanket Included
No
Destination Country
US
Installation Type
INDOOR
Max Wattage
1,650
Application
RESIDENTIAL
Shipping Height
26.25"
Shipping Length
22.25"
Shipping Width
19.5"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
18 in."
Shipping Weight
68lbs
Product Literature
Sales Brochures
Submittals
Manuals
Parts Sheet
Archive
Warranty
Energy Guide
