Product Details
- Delivers 222-gallon recovery rate
- Ultra-Low NOx modulating gas burner maintains high efficiency operation at lower input rates
- High efficiency condensing design delivers up to 96% thermal efficiency
- Helical coil internal heat exchanger lengthens heat transfer cycle and reduces lime & scale build-up to maintain high efficiency operation
- Power direct design vents up to 130 equivalent feet using PVC, CPVC or Polypropylene (solid core only) through a sidewall or roof
- Full serviceable from the front two access panels & modeular components easily reomvable
- Tank and helical heat exchanger are constructed of 444 stainless steel for superior corrosion resistance
- Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
- Ultra quiet blower and burner to minimize noise
- 10-year limited tank and parts warranty

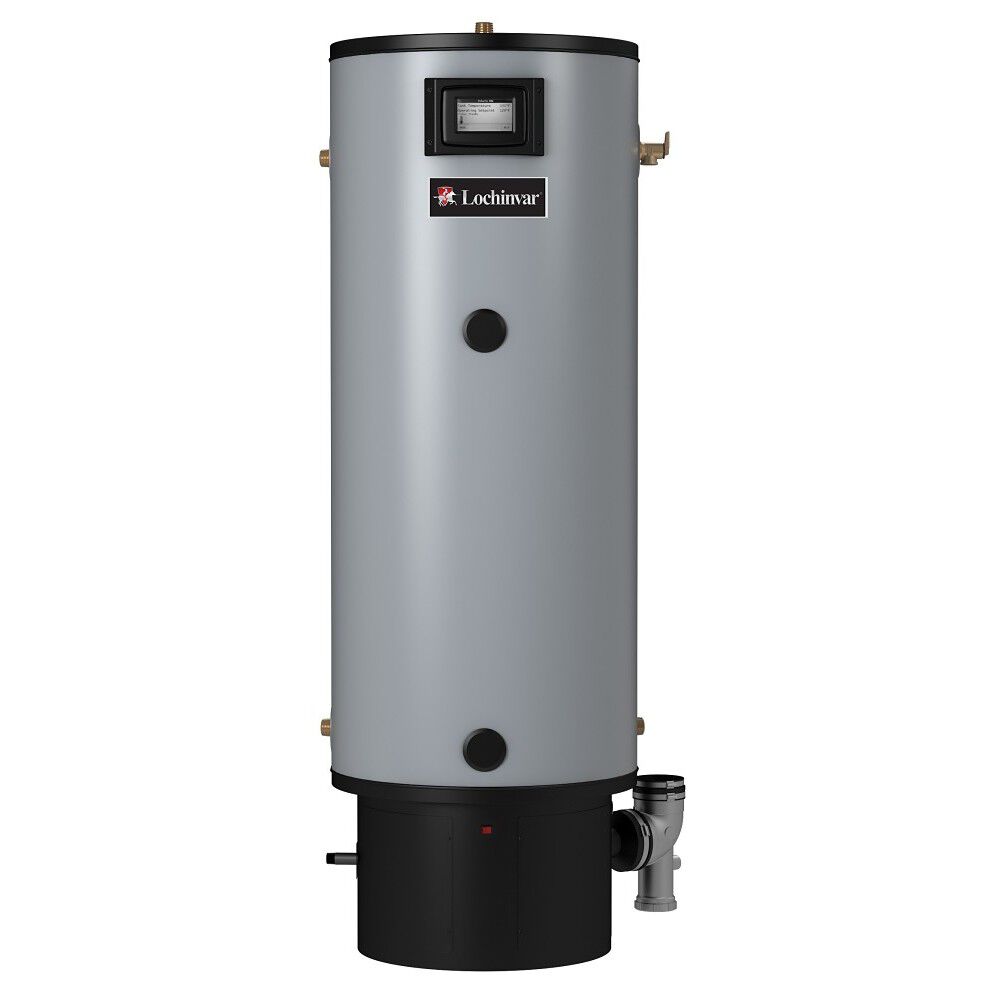

50-Gallon Power Direct Vent Natural Gas Water Heater is the high performance answer for today’s hot water needs. It can provide endless hot water* and can be used for a combination of domestic hot water and space heating.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
48.5 Gallons
Thermal Efficiency
96%
Maximum BTUs
175,000
Power Source
GAS
Limited Tank Warranty
10 Years
Limited Parts Warranty
10 Years
T&P Relief Valve
Yes
Water Connection Location
SIDE
Water Connection Size
1"
ASME Certified
No
Amperes
5
Blanket Included
No
Destination Country
US
Digital Display
true
ENERGY STAR® Certified
true
Fuel Source
NATURAL
Height to Gas Valve
6.00
Height to T&P
56.00
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Minimum BTUs
80,000.00
Application
RESIDENTIAL
Shipping Height
69.25"
Shipping Length
26"
Shipping Width
26"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
63.5"
Diameter
22 in."
Shipping Weight
200lbs
Vent Type
Power Direct Vent
Product Literature
Sales Brochures
Parts Sheet
