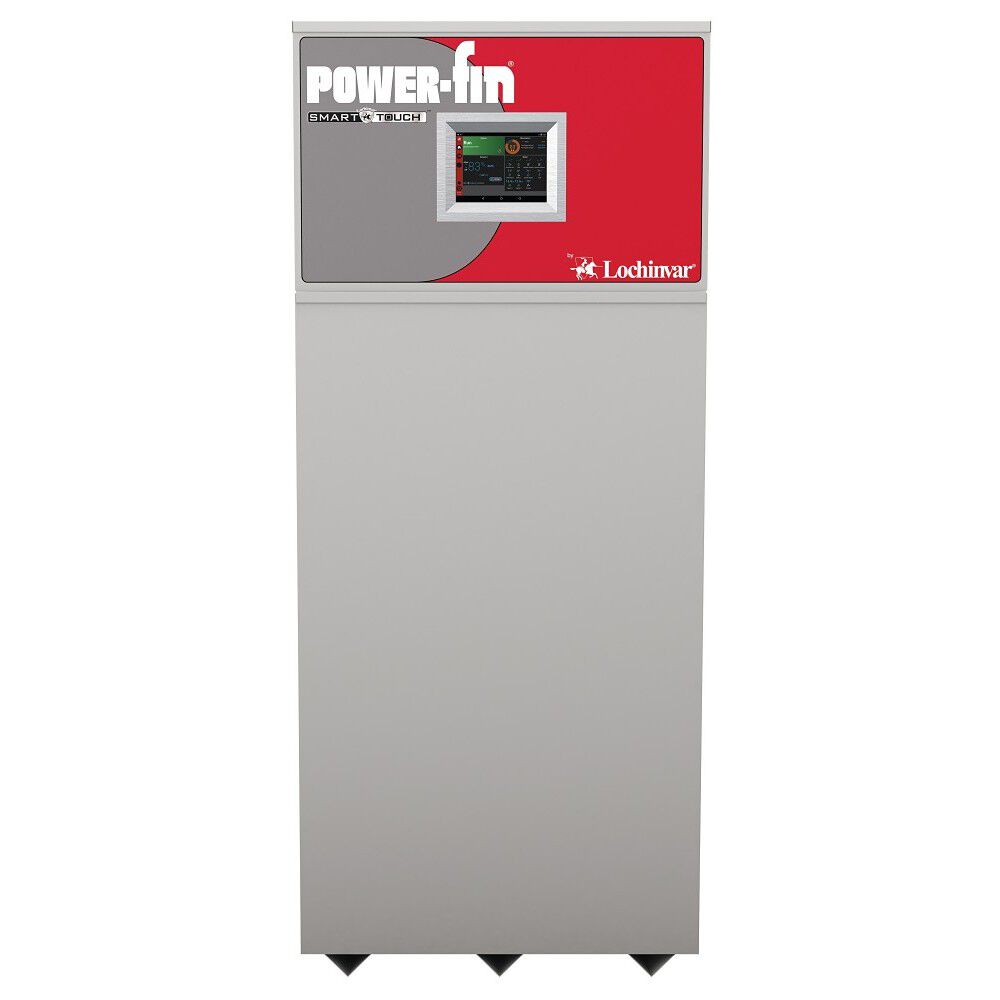

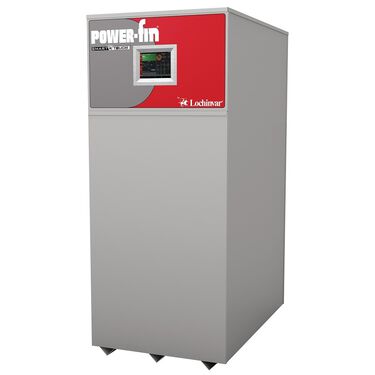

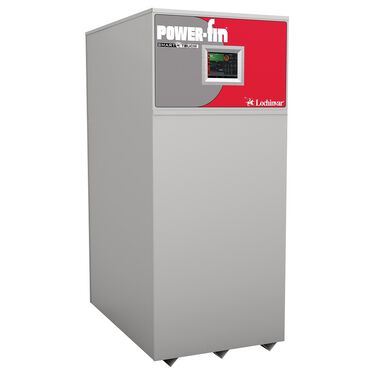

Power-fin® Boiler

Model PBN1002-M9
Fuel Source
Maximum BTU's

  • 999,000 Btu/Hr Input
  • 5:1 Turndown Ratio
  • 85% Thermal Efficiency

    •
    Power-fin® Boiler
    Model PBN1002-M9
    Find a Local Pro
    Find a Local Pro
    Product Details
    • 999,000 Btu/Hr Input
    • 5:1 Turndown Ratio
    • 85% Thermal Efficiency
    • SMART TOUCH™ LCD Display
    • CON·X·US™ Remote Connect
    • Built-in Cascading Sequencer for up to 8 Boilers
    • Outdoor Installation Ready
    • 10 Yr. Limited Warranty

      • With thermal efficiencies of up to 87%, Power-Fin boilers feature a 5:1 turndown ratio that will precisely match the firing rate to heating load requirements. This results in less equipment cycling for greater efficiency and cost savings.

    Specifications
    Tech Specs
    Thermal Efficiency
    85%
    Maximum BTUs
    999,000
    Power Source
    GAS
    Limited Parts Warranty
    1 Years
    ASME Certified
    Yes
    ASME Stamp
    H
    Destination Country
    US
    Fuel Source
    NATURAL
    Height to Gas Valve
    48.88
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    10 Years
    Minimum BTUs
    199,800.00
    Application
    COMMERCIAL
    Shipping Height
    66"
    Shipping Length
    26"
    Shipping Width
    45"
    Side Loop
    No
    Dimension & Venting
    Type
    Boiler
    Height
    59.25"
    Width
    23"
    Shipping Weight
    662lbs
    Vent Type
    Room Air/Direct Vent/ Common Vent
