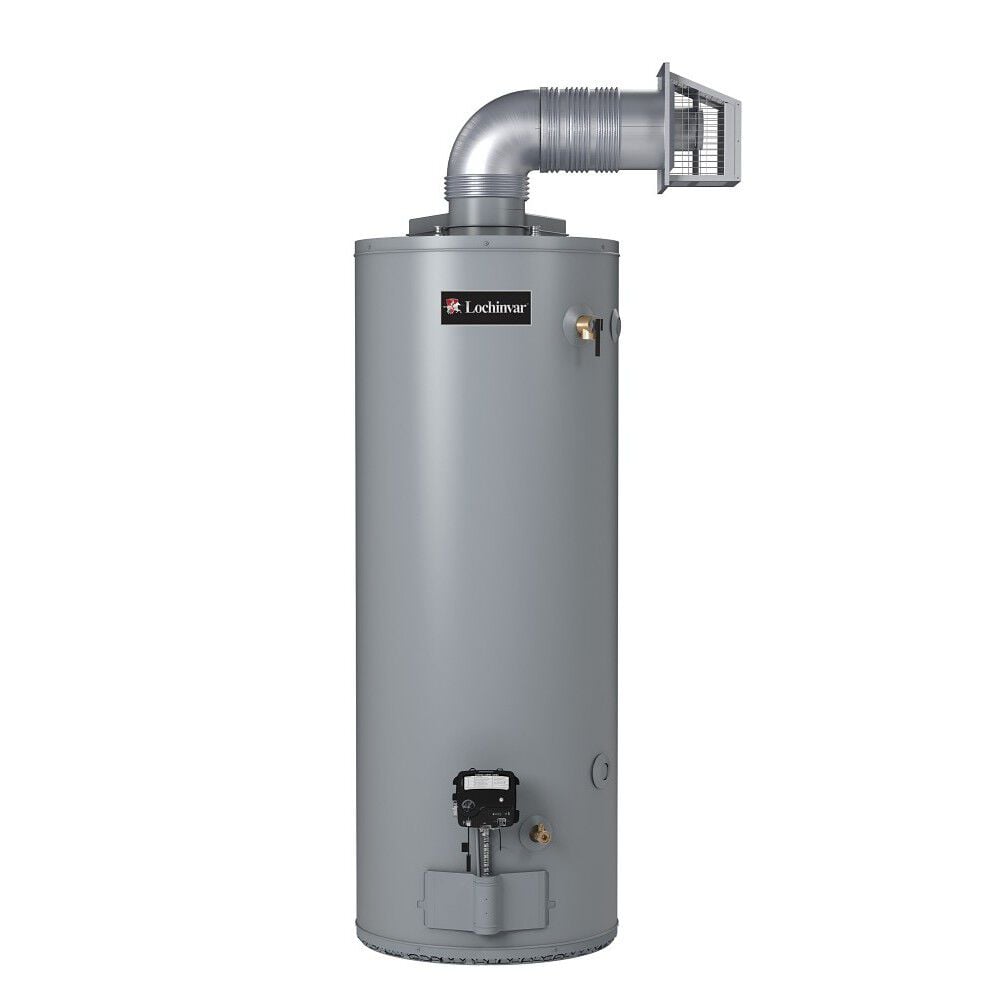

50-Gallon Direct Vent Liquid Propane Gas Water Heater

Model GBL05040ST 301
Capacity (Gallons)
Fuel Source
Height Classification
Advanced Options
First Hour Rating
Side Loop
Maximum BTU's

  • Delivers 77-gallon first hour rating
  • 40,000 BTU input direct vent design delivers up to 0.66 Uniform Energy Factor
  • Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements

    •
    50-Gallon Direct Vent Liquid Propane Gas Water Heater
    Model GBL05040ST 301
    Find a Local Pro
    Find a Local Pro
    Product Details
    • Delivers 77-gallon first hour rating
    • 40,000 BTU input direct vent design delivers up to 0.66 Uniform Energy Factor
    • Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
    • Automatic cleaning system protects against sediment build-up
    • Stainless steel tank saver anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
    • 6-year limited tank and parts warranty

      • The FVIR-compliant 50-Gallon Direct Vent Liquid Propane Gas Water Heater is to designed to draw air from outside the home, eliminating problems caused by insufficient indoor ventilation. The unit has horizontal air intake and venting on all models up to 80” from the outside wall with no electrical power needed.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    50 Gallons
    Rated Storage Volume
    48 Gallons
    UEF
    0.66
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    77 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to T&P
    51.75
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    71.5"
    Shipping Length
    31.5"
    Shipping Width
    23.5"
    Side Loop
    Yes
    Dimension & Venting
    Type
    Water Heater
    Height
    60"
    Diameter
    22 in."
    Shipping Weight
    200 lbs
    Vent Type
    Direct Vent
