Product Details
- 96.2% Thermal Efficiency
- 20:1 Turndown Ratio
- Featuring CON·X·US® Remote Connectivity and SMART TOUCH™ Operating Control
- 8” LCD Touch Screen Control
- RealTime O2 Feedback™ Option
- Flexible Flow Rates Up to 600 GPM
- Up to 100' Equivalent Vent Length
- 10 Year Limited Warranty

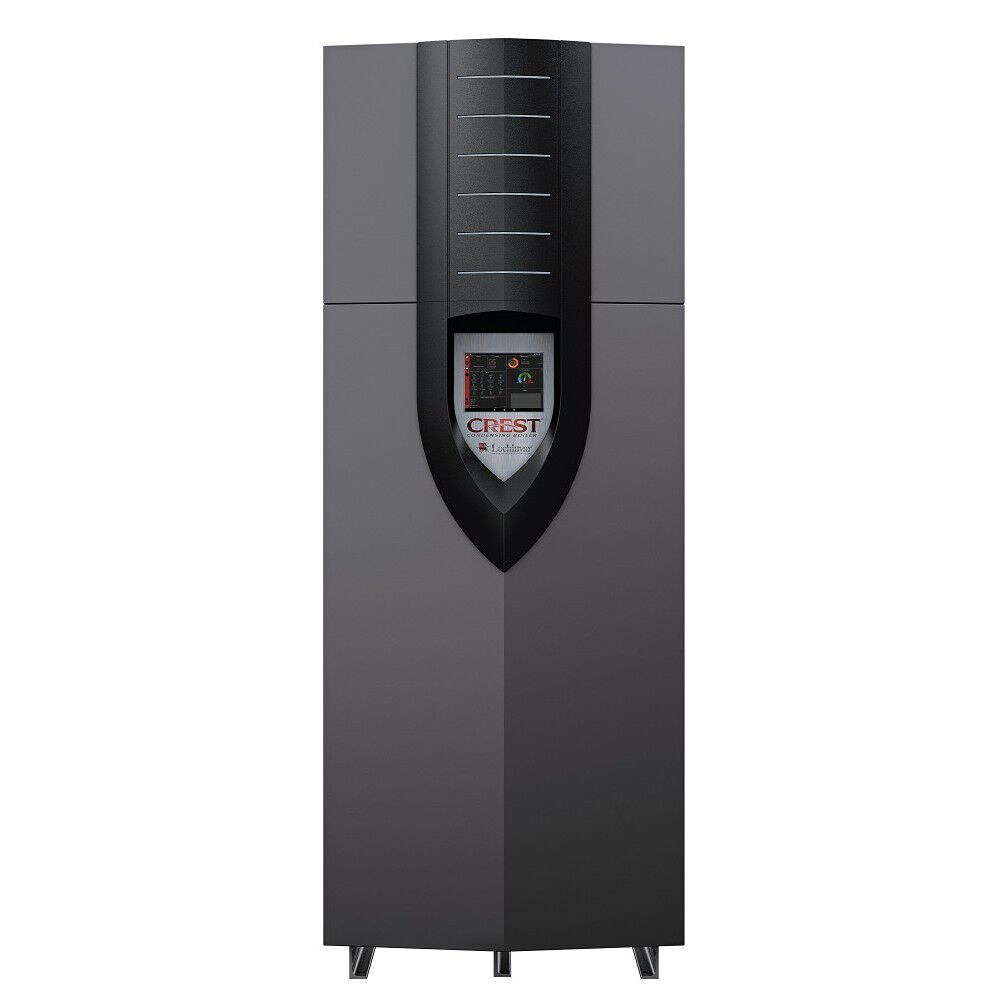

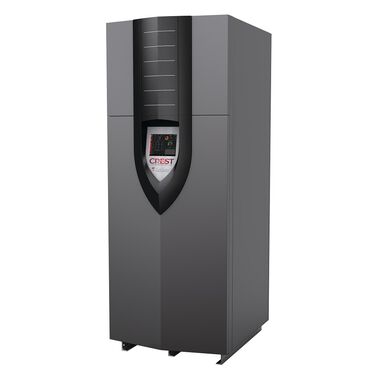

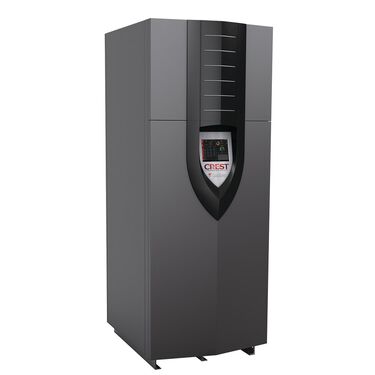

CREST changes how the industry thinks about fire-tube boilers with the exclusive wave fire-tube design, advancements in Lochinvar combustion technology and the SMART TOUCH™ control with CON·X·US. Now you have the opportunity to use all of these features in sizes ranging from 750,000 to 6.0 million BTU/hr and delivering up to 96.2% thermal efficiency.
Specifications
Tech Specs
Nominal Gallon Capacity
77 Gallons
Thermal Efficiency
96%
Maximum BTUs
999,000
Power Source
GAS
Limited Parts Warranty
1 Years
Water Connection Size
3"
ASME Certified
Yes
ASME Stamp
H
Destination Country
US
ENERGY STAR® Certified
Yes
Fuel Source
NATURAL
Ignition Type
Direct Spark
Installation Type
INDOOR
Limited Heat Exchanger Warranty
10 Years
Minimum BTUs
50,000
Application
COMMERCIAL
Recovery Rise at 90°F
1,294
Shipping Height
95"
Shipping Length
78"
Shipping Width
37"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Boiler
Height
78"
Width
30"
Shipping Weight
1596 lbs
Height to Gas Valve
79.75"
Vent Material
Stainless Steel, polypropylene, PVC, CPVC
