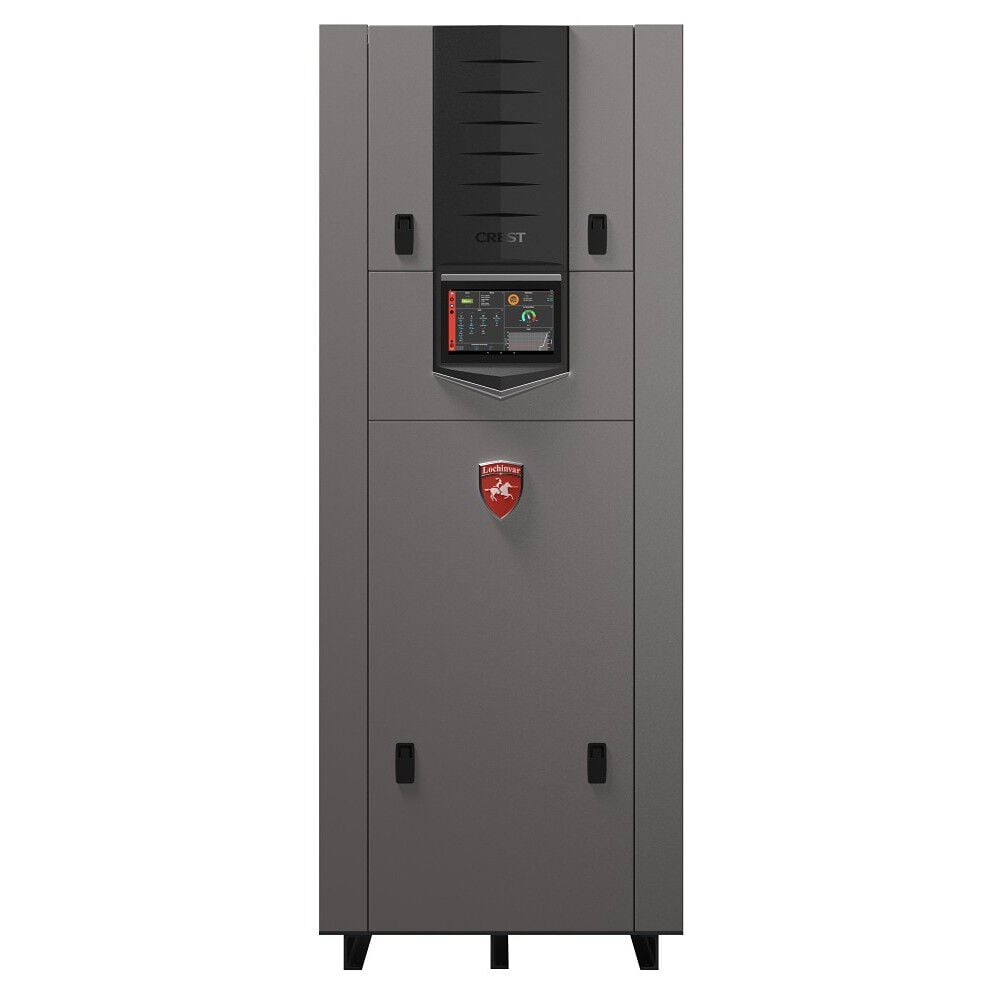

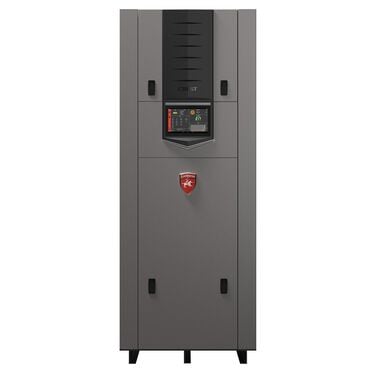

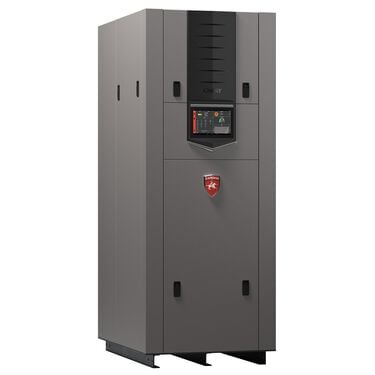

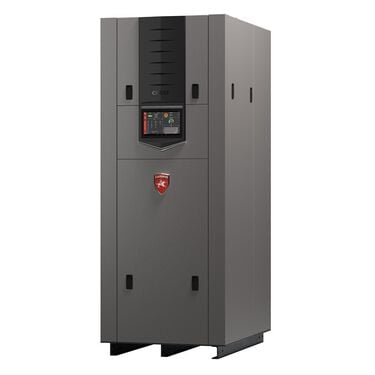

CREST® Condensing Boiler with Hellcat Combustion Technology

Model FCB2500N 100
Fuel Source
Maximum BTU's

  • 96.0% Thermal Efficiency
  • 20:1 Turndown Ratio
  • Featuring CON·X·US® Remote Connectivity and SMART TOUCH™ Operating Control

    •
    CREST® Condensing Boiler with Hellcat Combustion Technology
    Model FCB2500N 100
    Find a Local Pro
    Find a Local Pro
    Product Details
    • 96.0% Thermal Efficiency
    • 20:1 Turndown Ratio
    • Featuring CON·X·US® Remote Connectivity and SMART TOUCH™ Operating Control
    • Full Color 10" Capacitive Touch Screen
    • With RealTime O2 Trim, this Combustion Technology Features Feedforward and Feedback Data that Ultimately Delivers a Targeted Combustion O2 Range.
    • Up to 150' Equivalent Vent Length
    • Refined Industrial Design Featuring Narrower Front Doors and Lighter, Yet Stronger Side Panels
    • 10 Year Limited Warranty

      • The CREST with Hellcat Combustion Technology features an O2 sensor system designed for a condensing, hydronic boiler combined with Lochinvar’s Smart Touch control that adapts to the environment it’s installed in.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    157 Gallons
    Thermal Efficiency
    96%
    Maximum BTUs
    2,500,000
    Power Source
    GAS
    Limited Parts Warranty
    1 Years
    Water Connection Size
    4"
    ASME Certified
    Yes
    ASME Stamp
    H
    Destination Country
    US
    Fuel Source
    NATURAL
    Ignition Type
    Direct Spark
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    10 Years
    Minimum BTUs
    125,000
    Application
    COMMERCIAL
    Recovery Rise at 90°F
    323,232
    Shipping Height
    95"
    Shipping Length
    96"
    Shipping Width
    43"
    Side Loop
    No
    Voltage
    208
    Dimension & Venting
    Type
    Boiler
    Height
    81.75"
    Width
    35"
    Shipping Weight
    2812 lbs
    Vent Type
    Room Air/Direct Vent/ Common Vent
    Height to Gas Valve
    81.75"
    Vent Material
    Stainless Steel, polypropylene, PVC, CPVC
