Product Details
- 98.0 Thermal Efficiency
- 10:1 Turndown Ratio
- Stainless Steel Fire Tube Heat Exchanger
- Featuring CON·X·US® Remote Connectivity and SMART TOUCH™ Operating Control
- Up to 100' Equivalent Vent Length
- 7” Touch Screen
- Flow Rates from 10 to 105 GPM
- 10 Year Limited Warranty

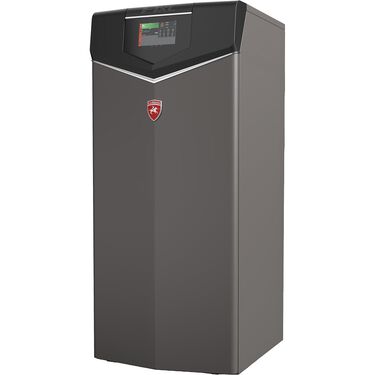

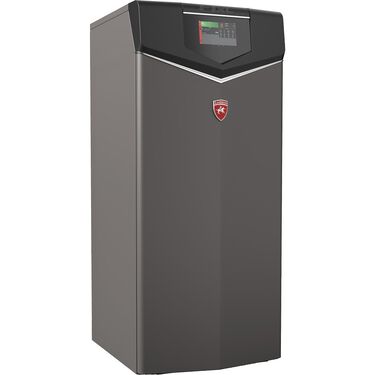

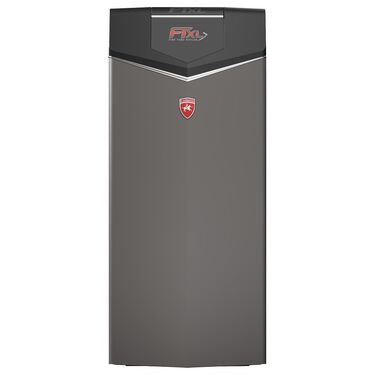

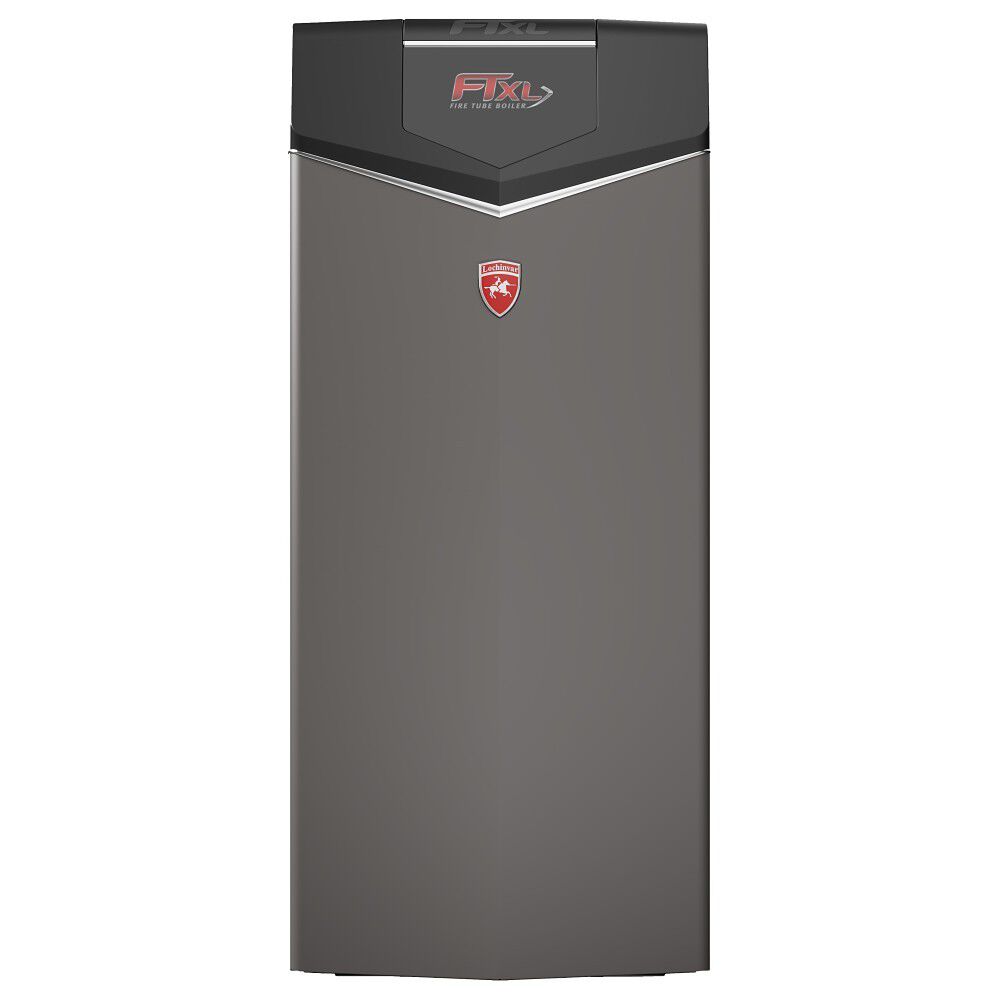

For light commercial applications, the FTXL™ brings models from 399,000 to 999,000 Btu/hr, and takes Lochinvar’s fire-tube technology to the next level.
Specifications
Tech Specs
Nominal Gallon Capacity
13 Gallons
Thermal Efficiency
98%
Maximum BTUs
399,000
Power Source
GAS
Limited Parts Warranty
1 Years
Water Connection Size
2"
ASME Certified
Yes
ASME Stamp
H
Destination Country
US
ENERGY STAR® Certified
Yes
Fuel Source
PROPANE
Ignition Type
Direct Spark
Installation Type
INDOOR
Limited Heat Exchanger Warranty
10 Years
Minimum BTUs
39,900
Application
COMMERCIAL
Recovery Rise at 90°F
527
Shipping Height
64"
Shipping Length
29"
Shipping Width
38"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Boiler
Height
53.375"
Width
26.5"
Shipping Weight
432 lbs
Vent Type
Room Air/Direct Vent
Height to Gas Valve
39.75"
Vent Material
PVC, CPVC, Polypropylene, AL29-4C Stainless
