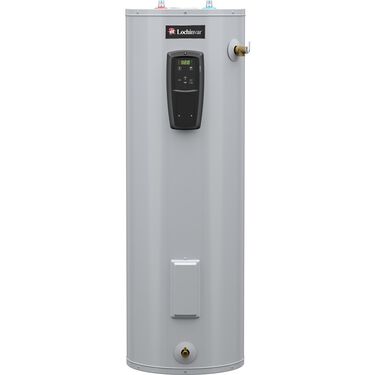

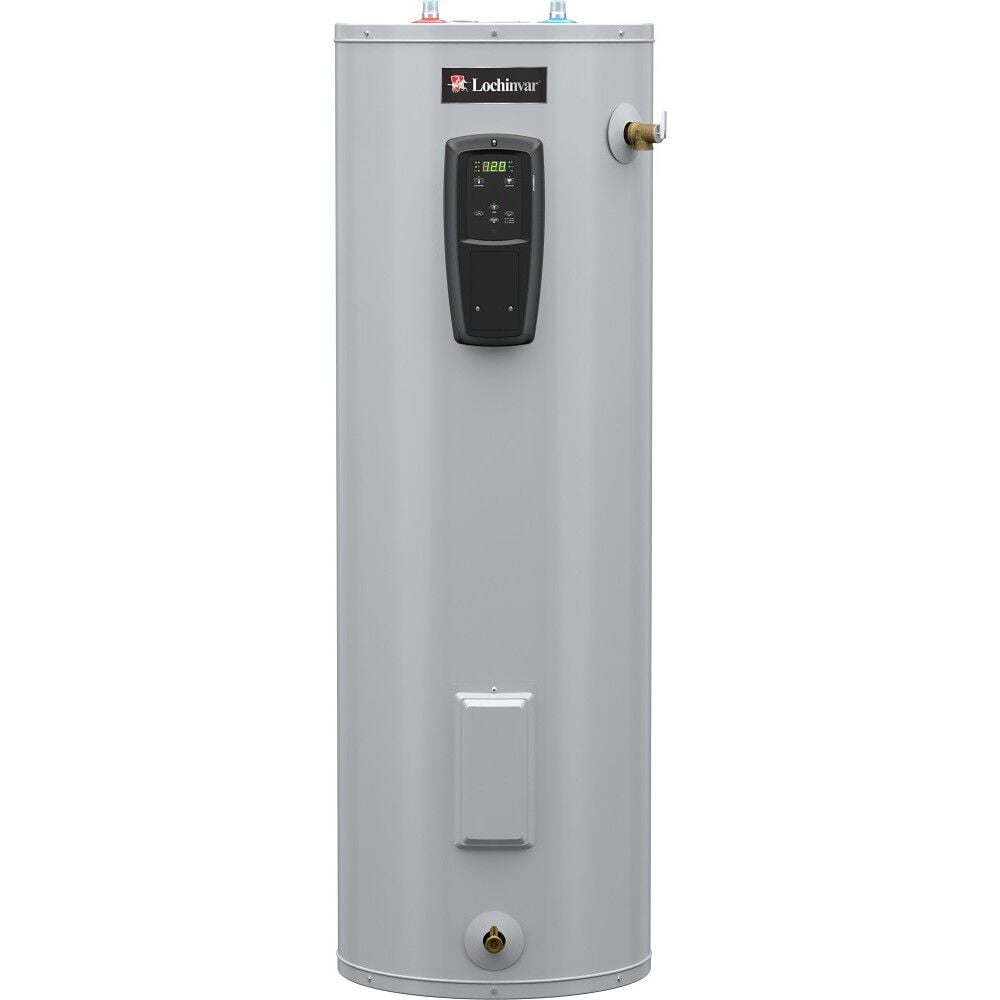

Grid-Capable 40-Gallon Short Electric Tank Water Heater

Model DRM-40 100
Capacity (Gallons)
First Hour Rating
Limited Tank Warranty
UEF
Height Classification

  • Equipped with Demand Response (CTA-2045 EcoPortCM) communication port for Utility Demand Response program participation (Module needed from local utility)
  • Meets state of Washington and Oregon Grid Capable requirements
  • User friendly controls to set operating modes & review diagnostics
  • Grid-Capable 40-Gallon Short Electric Tank Water Heater
    Model DRM-40 100
    Product Details
    • Equipped with Demand Response (CTA-2045 EcoPortCM) communication port for Utility Demand Response program participation (Module needed from local utility)
    • Meets state of Washington and Oregon Grid Capable requirements
    • User friendly controls to set operating modes & review diagnostics
    • Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
    • Long-lasting lower Incoloy™ stainless steel element
    • Durable glass tank lining protects against corrosion
    • Automatic cleaning system protects against sediment build-up
    • Tank saver anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed

    • Take advantage of advanced utility savings with Grid-Capable water heaters. The built-in CTA-2045 port allows homeowners to connect to local Utility Smart Grid Programs where available.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    37 Gallons
    UEF
    0.92
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    53 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Height to T&P
    40.75
    Installation Type
    INDOOR
    Max Wattage
    4,500
    Number of Elements
    2
    Application
    RESIDENTIAL
    Shipping Height
    53.38"
    Shipping Length
    23.69"
    Shipping Width
    21.5"
    Side Loop
    No
    Voltage
    240
    Dimension & Venting
    Type
    Water Heater
    Height
    49.75"
    Diameter
    20.5 in."
    Shipping Weight
    95lbs
