Product Details
- Industry leading water stratification
- 95% Drawdown
- Single Pass application
- 125 PSI Working Pressure
- 3” Flanged Connections
- Lifting Lugs
- 10-year limited tank

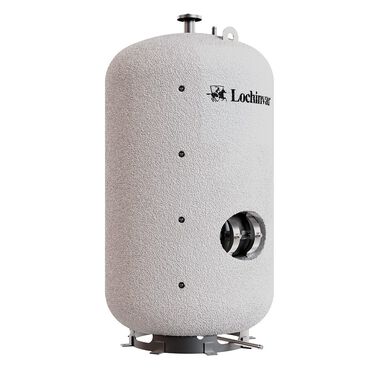

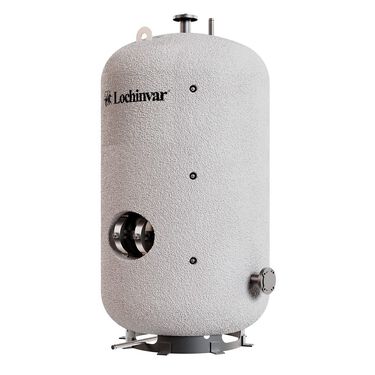

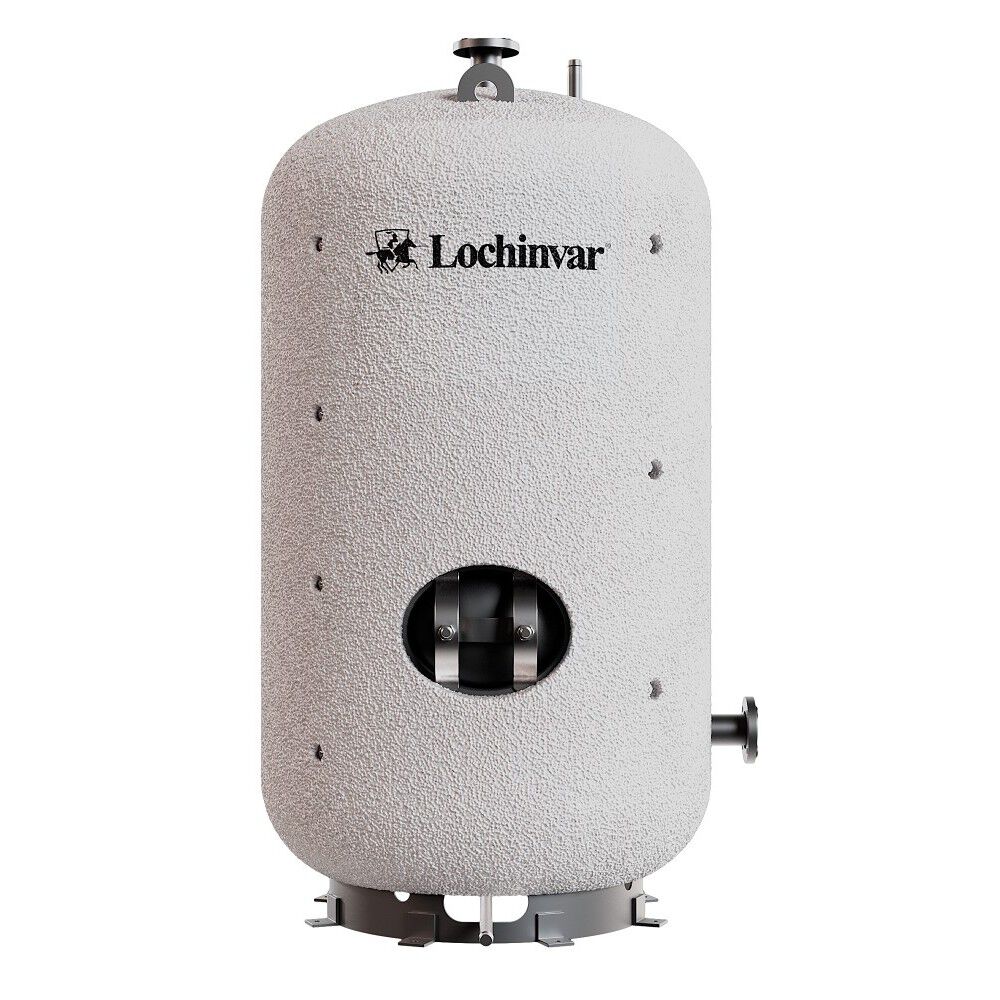

The Lochinvar Thermal-Stor™ heat pump storage tank is optimized for efficiently storing thermal energy from Domestic Hot Water (DHW) applications requiring long duration recovery periods. Thermal-Stor tanks are designed to take full advantage of single pass systems by reducing turbulence of incoming water that would disrupt hot water volume with Lochinvar’s patent pending stratifying baffle. Heat pump systems integrated with Thermal-Stor tanks deliver an industry leading drawdown of 95%, ensuring continual hot water supply. An impressive R22 insulation value helps retain the efficiently produced heat until it is demanded by the system.
Specifications
Tech Specs
Nominal Gallon Capacity
250 Gallons
Limited Tank Warranty
10 Years
Limited Parts Warranty
1 Years
Water Connection Size
3"
ASME Certified
Yes
ASME Stamp
HLW
Destination Country
US
Limited Heat Exchanger Warranty
10 Years
Application
COMMERCIAL
Shipping Height
90"
Shipping Length
48"
Shipping Width
48"
Side Loop
No
Dimension & Venting
Type
Tank
Height
99.5"
Shipping Weight
978lbs
