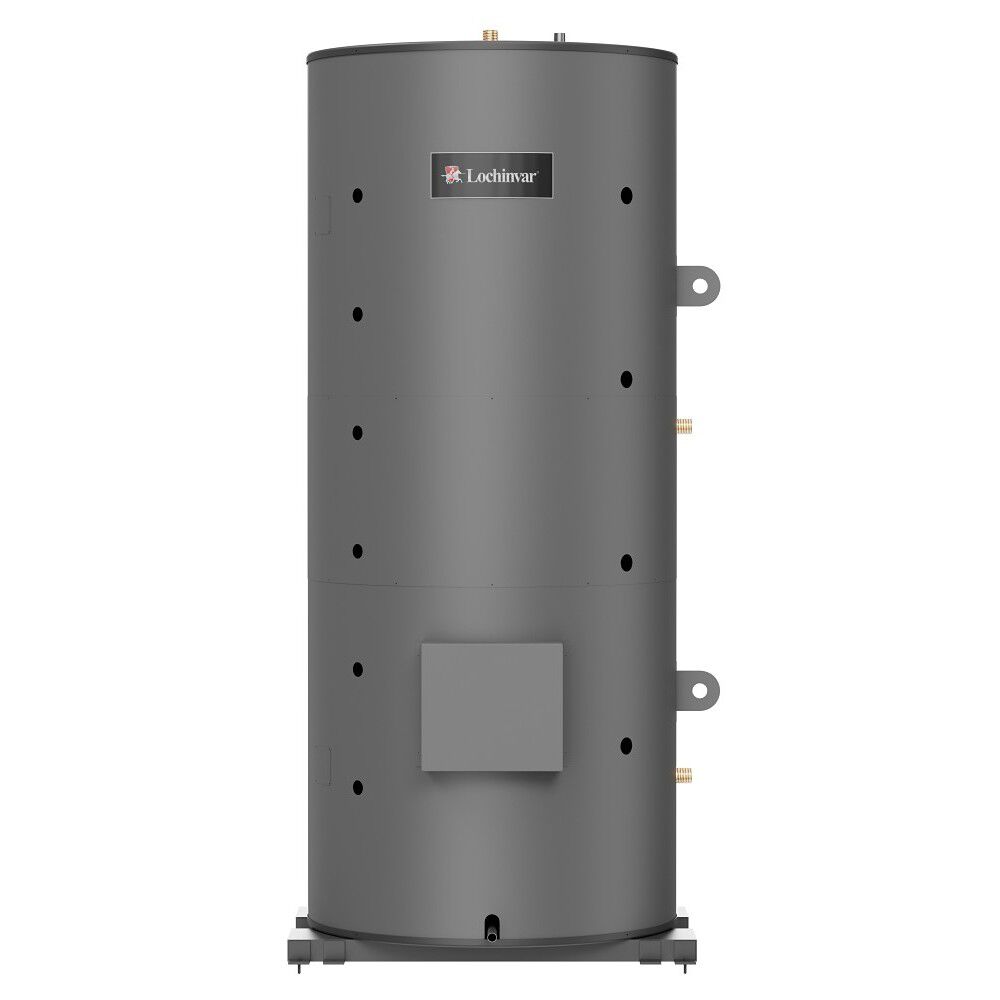

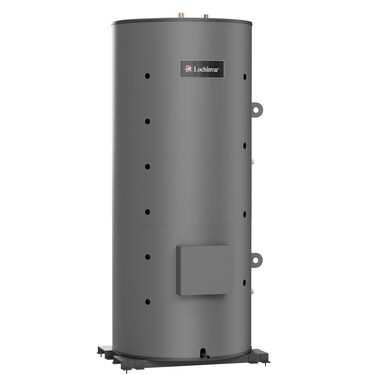

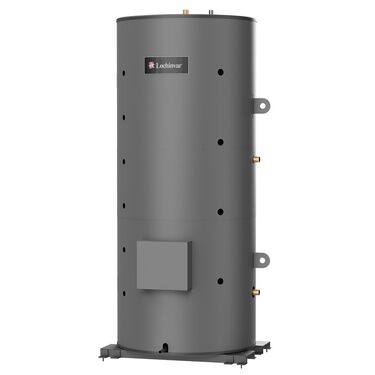

Product Details
- Heat pump storage tanks are optimized for heat pump domestic hot water applications requiring long duration recovery periods
- Proprietary stratification design provides 95% draw down
- Commercial-grade magnesium anode rods provide additional protection against corrosion
- All tanks are constructed to the requirements of the ASME
- 5” thick foam insulation with a value of R30, exceeds minimum ASHRAE and U. S. Department of Energy thermal insulation requirements
- Heavy gauge steel cabinet with high quality paint for added durability
- Furnished with two 3” bolted flange circulating connections for ease of installation
- 125 PSI ASME standard working pressure
- 10-year limited tank / 1-year limited parts warranty
These storage tanks are optimized for heat pump domestic hot water applications requiring long duration recovery periods. Designed to take full advantage of heat pump systems, a unique baffle reduces water turbulence into and out of the tank to prevent disruption of the stratified layers. This allows for draw down of 95%, delivering more hot water from a given capacity. R30 insulation value helps to significantly reduce standby loss.
Specifications
Tech Specs
Nominal Gallon Capacity
850 Gallons
Limited Tank Warranty
5 Years
Limited Parts Warranty
1 Years
Water Connection Size
3"
ASME Certified
Yes
ASME Stamp
HLW
Destination Country
US
Limited Heat Exchanger Warranty
10 Years
Application
COMMERCIAL
Shipping Height
74"
Shipping Length
141"
Shipping Width
68"
Side Loop
No
Dimension & Venting
Type
Tank
Height
137"
Shipping Weight
2910lbs
