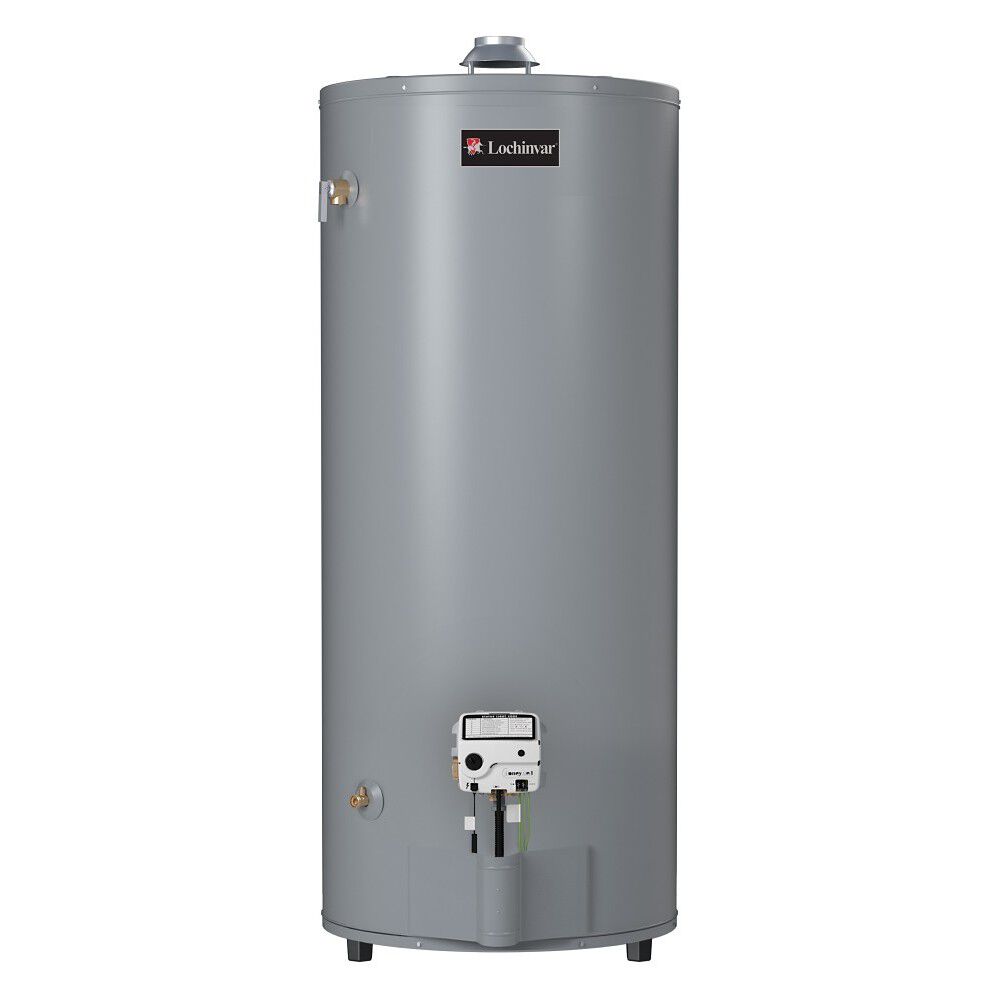

100-Gallon High Recovery Atmospheric Vent Natural Gas Water Heater

Model XTN10075 400
Fuel Source
Capacity (Gallons)
Limited Tank Warranty
Side Loop

  • High capacity gas water heater uses 75,100 BTU atmospheric vent input to produce recoveries up to 81 gallons per hour
  • Push-button piezo ignitor makes lighting pilot fast & easy
  • 100-Gallon High Recovery Atmospheric Vent Natural Gas Water Heater
    Model XTN10075 400
    Product Details
    • High capacity gas water heater uses 75,100 BTU atmospheric vent input to produce recoveries up to 81 gallons per hour
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Fully automatic controls with safety shutoff, requires no power
    • Glass tank lining protects against corrosion

    • The 100-Gallon High Recovery Atmospheric Vent Natural Gas Water Heater is designed for reliable performance, reduced NOx emissions and it can deliver up to 116 gallons of water in the first hour of operation.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    98 Gallons
    Rated Storage Volume
    95 Gallons
    UEF
    0.58
    Thermal Efficiency
    80%
    Maximum BTUs
    75,100
    Power Source
    GAS
    Limited Tank Warranty
    10 Years
    Limited Parts Warranty
    10 Years
    T&P Relief Valve
    Yes
    Water Connection Size
    1.25"
    Emissions
    Low NOx
    First Hour Rating
    170 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    5.00
    Fuel Source
    NATURAL
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    68.5"
    Shipping Length
    33.5"
    Shipping Width
    30.5"
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    65"
    Diameter
    27.75 in."
    Shipping Weight
    340lbs
    Vent Type
    Atmospheric Vent
    Product Literature
