Product Details
- Designed for use as a recovery water heater or booster
- Meets ASHRAE/IES 90.1-2006
- Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
- Power circuit fusing protects elements and contractors from short circuits, overloading or line surges
- Factory installed terminal block for ease of installation
- Advanced electronic control for ease of operations and diagnostics
- Dual commercial-grade anode rods for maximum corrosion protection
- Simplified circuitry, color coded for ease of service
- 3-year limited tank and 1-year limited parts warranty

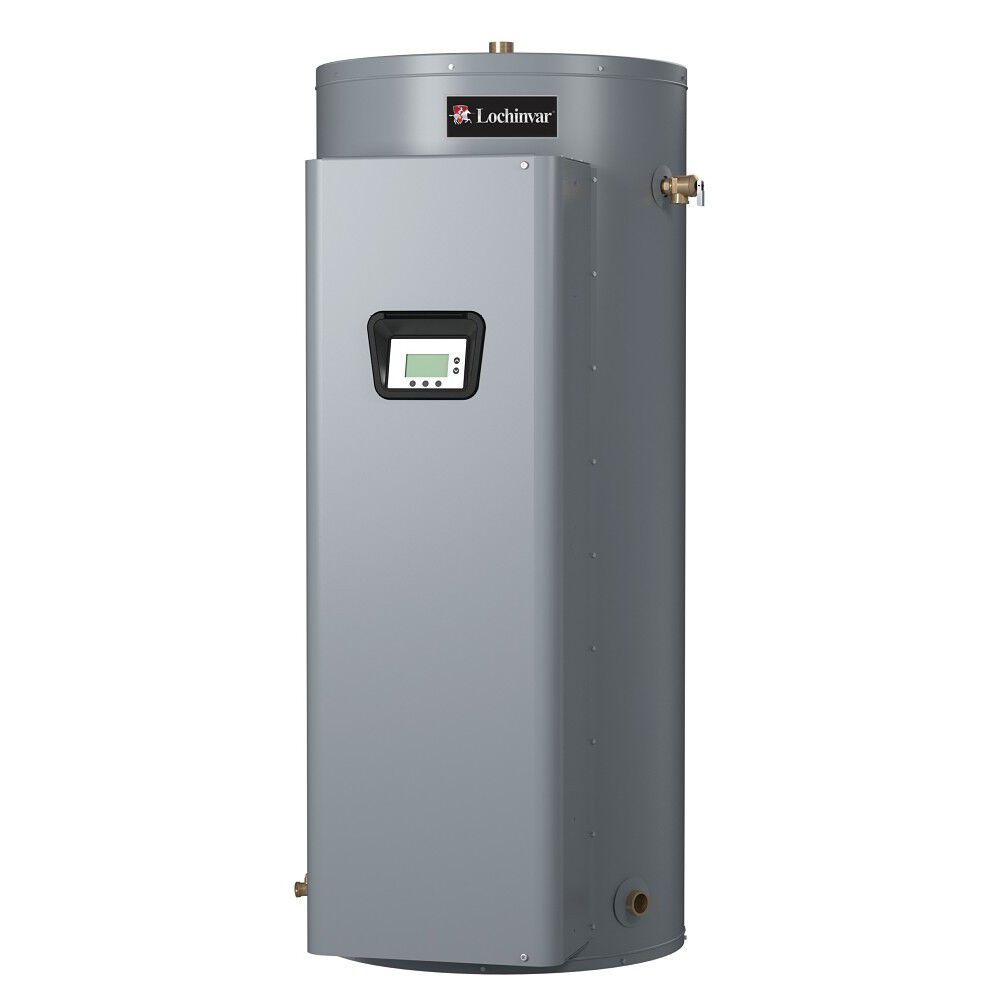

The Standard Hi-Power commercial electric water heaters are designed for use as recovery water heaters for hot water supply service or as boosters for supplying sanitizing rinse water for dish washing. The water heaters display detailed operational and diagnostic information including fault and alert messages if an operational issue occurs. Advanced control system automatically lowers the operating set point by a programmed value during user-defined time periods to help reduce operating costs during unoccupied or low demand periods.
Specifications
Tech Specs
Nominal Gallon Capacity
119 Gallons
Rated Storage Volume
108 Gallons
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Size
0.75"
ASME Certified
No
Blanket Included
No
Destination Country
US
Height to T&P
54.65
Max Wattage
12,300
Number of Elements
3
Application
COMMERCIAL
Shipping Height
82"
Shipping Length
38"
Shipping Width
32"
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Height
62.25"
Width
29.5"
Shipping Weight
420lbs
