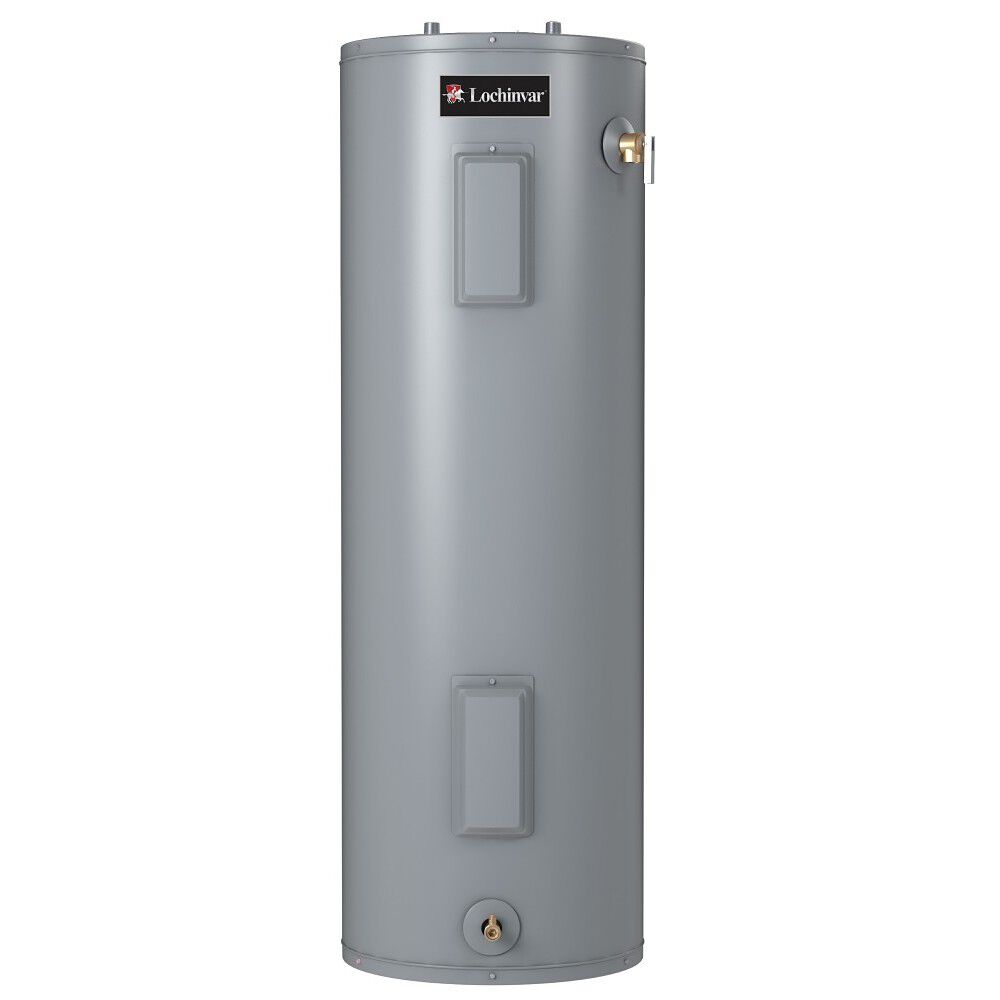

66-Gallon Light-Service Commercial Electric Water Heater

Model LST-66-250 250
Capacity (Gallons)
Height Classification
Advanced Options
Max Wattage
Voltage

  • Designed for light duty commercial applications
  • Dual 6100-watt zinc plated copper sheathed elements
  • Thermostat is adjustable through a range of 120º to 181ºF with a manual reset high temperature cutoff
  • 66-Gallon Light-Service Commercial Electric Water Heater
    Model LST-66-250 250
    Product Details
    • Designed for light duty commercial applications
    • Dual 6100-watt zinc plated copper sheathed elements
    • Thermostat is adjustable through a range of 120º to 181ºF with a manual reset high temperature cutoff
    • Anode rods with stainless steel core provide additional corrosion protection
    • Enhanced-flow commercial-grade brass drain valve designed for durability, ease of maintenance & operation
    • Meets the standby loss requirements of the U.S. Department of Energy and current edition of ASHRAE/IES 90.1
    • 6-year limited tank and 1-year limited parts warranty

    • Light-Service commercial electric water heaters are designed for light duty commercial applications with intermittent hot water loads.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    66 Gallons
    Rated Storage Volume
    59.5 Gallons
    Thermal Efficiency
    98%
    Power Source
    ELECTRIC
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    1 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    ASME Certified
    No
    Amperes
    44.04
    Blanket Included
    No
    Destination Country
    US
    Height to T&P
    53.00
    Installation Type
    INDOOR
    Max Wattage
    12,200
    Number of Elements
    2
    Application
    COMMERCIAL
    Shipping Height
    64"
    Shipping Length
    24.5"
    Shipping Width
    21.5"
    Side Loop
    No
    Voltage
    277
    Dimension & Venting
    Type
    Water Heater
    Height
    60.25"
    Diameter
    22 in."
    Width
    22"
    Shipping Weight
    146lbs
