Product Details
- Delivers 57-gallon first hour rating
- Dual 4,500-watt commercial-grade heating elements deliver reliable and efficient hot water
- Junior Electric Side Connect water heater designed for installation under a counter, in a crawl space or in other tight spaces
- Side-mounted plumbing and electrical connections (optional top-mounted water connections for field conversion)
- Durable glass tank lining protects against corrosion
- Automatic cleaning system protects against sediment build-up
- Tank saver anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- CSA Certified and ASME Rated T&P Relief Valve, Factory-Installed
- 6-year limited tank and parts warranty

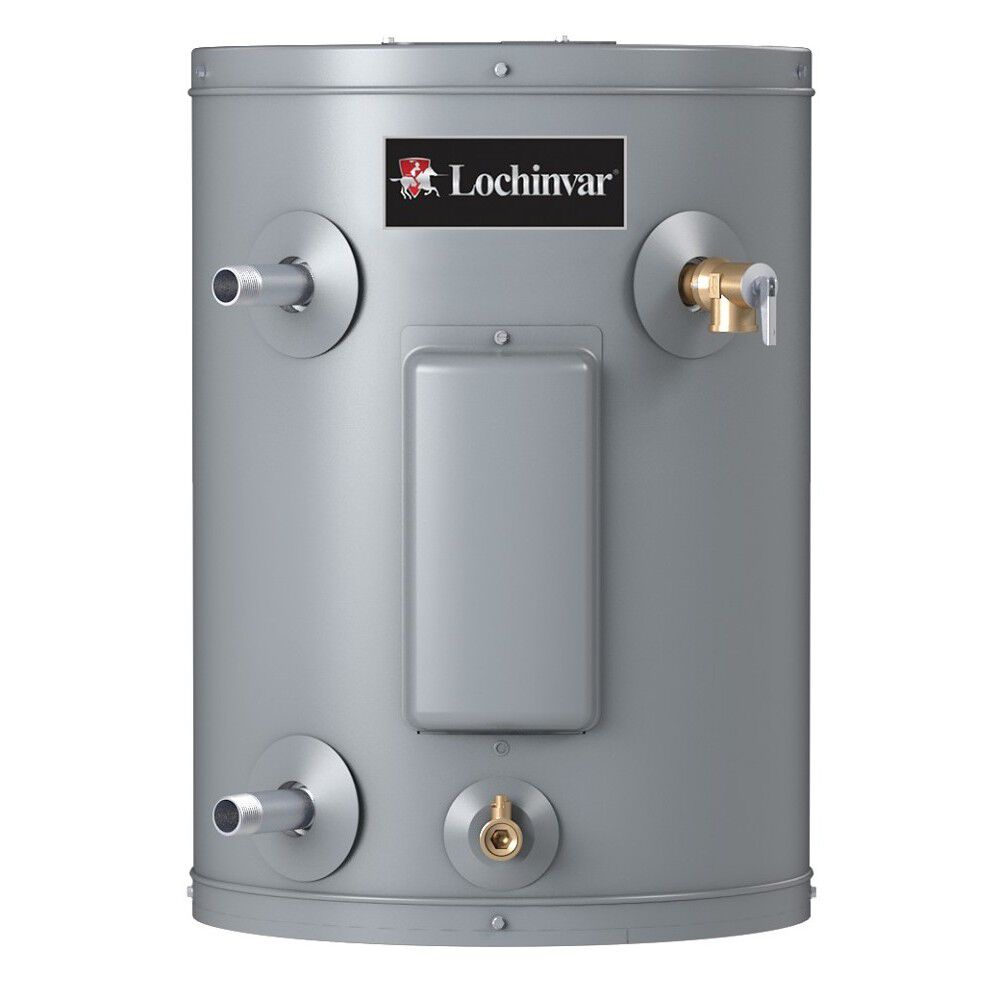

The Junior Electric Side Connect electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces.
Specifications
Tech Specs
Nominal Gallon Capacity
38 Gallons
Rated Storage Volume
35 Gallons
UEF
0.94
Power Source
ELECTRIC
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
Water Connection Location
SIDE
Water Connection Size
0.75"
First Hour Rating
57 Gallons
ASME Certified
No
Blanket Included
Yes
Destination Country
US
Installation Type
INDOOR
Max Wattage
4,500
Number of Elements
2
Application
RESIDENTIAL
Shipping Height
35.81"
Shipping Length
28"
Shipping Width
25"
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Height
31.25"
Diameter
24 in."
Shipping Weight
121lbs
Product Literature
Sales Brochures
Submittals
Manuals
Parts Sheet
Archive
Warranty
Energy Guide
