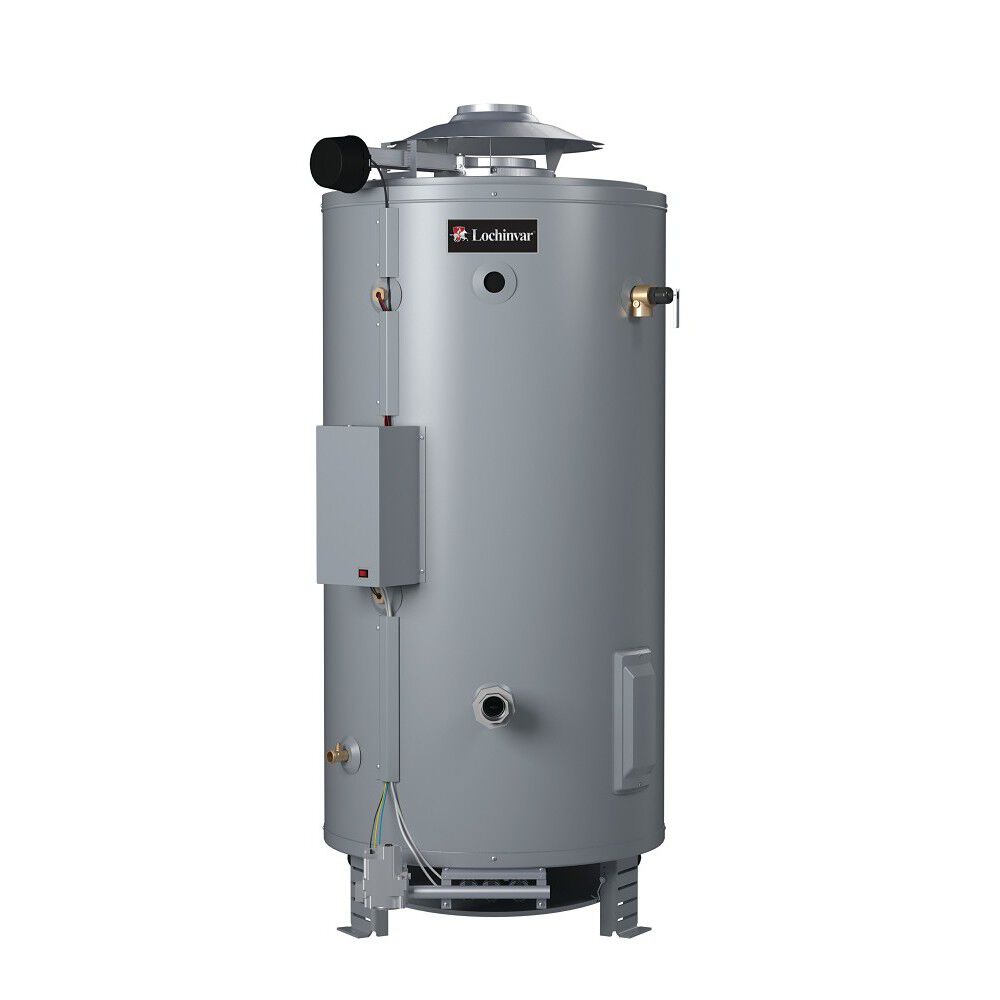

Product Details
- Automatic flue damper minimizes standby heat loss to achieve 80% thermal efficiency
- Inlet/outlet connections located top, front and rear for greater installation flexibility
- Space-saving units are up to one foot shorter than models they replace
- Installs standalone, manifolded or connected to storage tanks
- Permaglas Ultra Coat glass lining provides super protection against corrosion
- Intermittent electronic ignition eliminates standing pilot, saving energy
- Self-cleaning system reduces sediment build-up, maintaining rated thermal efficiency and reducing water heating costs (operates when cold water is connected through front)
- Factory-installed, CSA Certified and ASME Rated T&P Relief Valve
- 3-year limited tank and 1-year limited parts warranty
Provides outstanding performance and maximum installation flexibility for both new construction and replacement applications. Multiple options for placement of water connections and low installation clearances are additional installer-friendly features.
Specifications
Tech Specs
Nominal Gallon Capacity
100 Gallons
Rated Storage Volume
96 Gallons
Thermal Efficiency
80%
Maximum BTUs
199,000
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
ASME Certified
No
Amperes
5
Destination Country
US
Fuel Source
PROPANE
Installation Type
INDOOR
Application
COMMERCIAL
Shipping Height
85.5"
Shipping Length
41"
Shipping Width
34"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Diameter
27.75 in."
Shipping Weight
650lbs
Product Literature
Typical Specification
Manuals
Parts Sheet
Revit Product Drawings
Start Up Forms
Archive
Piping Diagram
