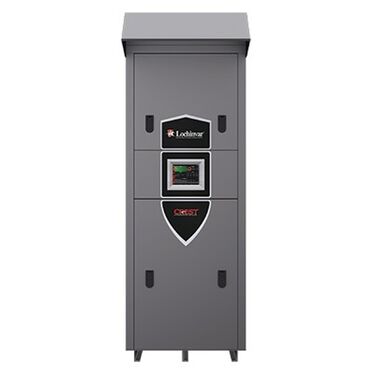

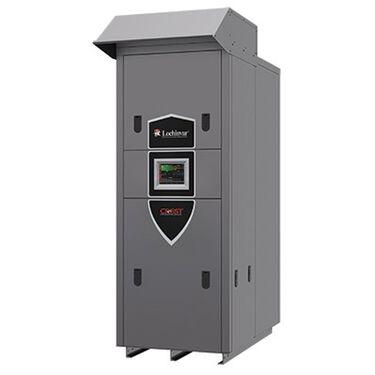

Outdoor Crest® Condensing Boiler

Model OFN3501 100
Fuel Source
Maximum BTU's

  • 96.0% Thermal Efficiency
  • 20:1 Turndown Ratio
  • Featuring CON·X·US® Remote Connectivity and SMART TOUCH™ Operating Control

    •

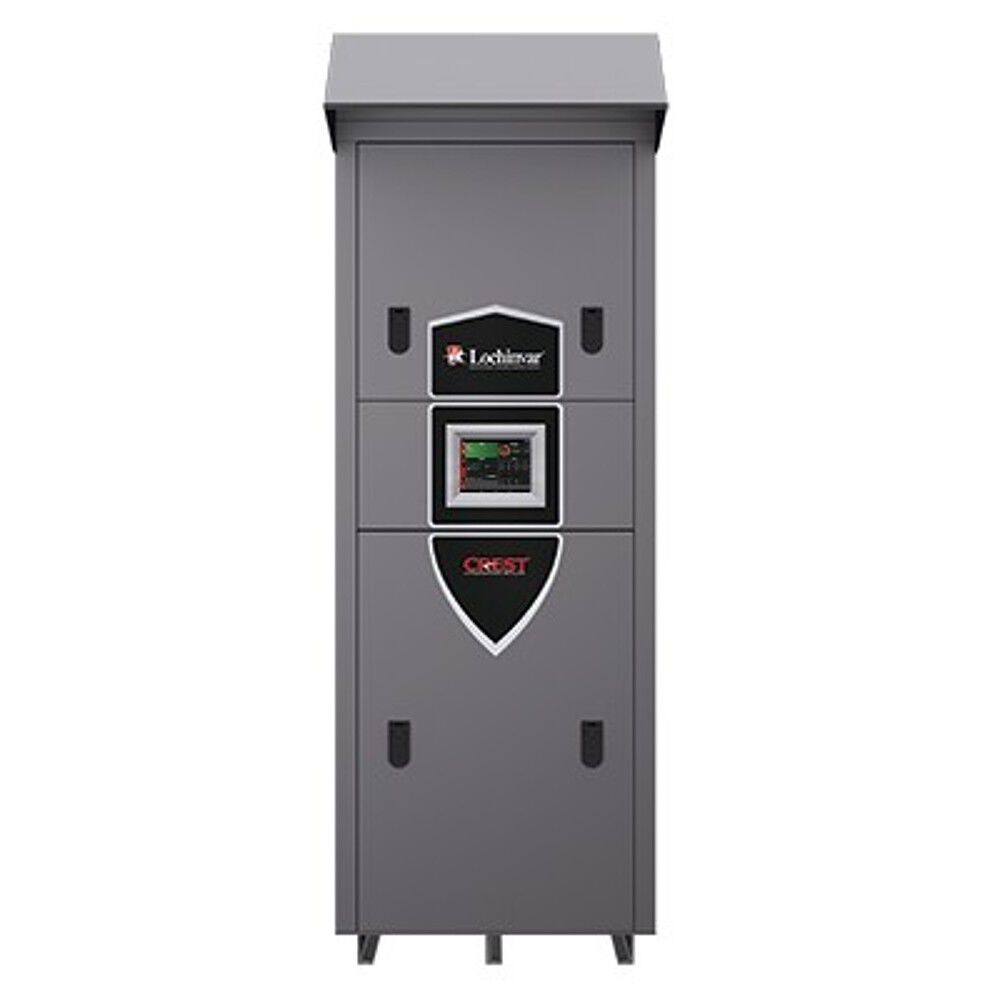

    Outdoor Crest® Condensing Boiler
    Model OFN3501 100
    Find a Local Pro
    Find a Local Pro
    Product Details
    • 96.0% Thermal Efficiency
    • 20:1 Turndown Ratio
    • Featuring CON·X·US® Remote Connectivity and SMART TOUCH™ Operating Control
    • 8” LCD Touch Screen Control
    • RealTime O2 Feedback™ Option
    • Flexible Flow Rates Up to 600 GPM
    • Up to 100' Equivalent Vent Length
    • 10 Year Limited Warranty

      • Outdoor CREST changes how the industry thinks about fire-tube boilers with the exclusive wave fire-tube design, advancements in Lochinvar combustion technology and the SMART TOUCH™ control with CON·X·US. Now you have the opportunity to use all of these features in sizes ranging from 750,000 to 6.0 million BTU/hr and delivering up to 96.0% thermal efficiency.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    202 Gallons
    Thermal Efficiency
    96%
    Maximum BTUs
    3,500,000
    Power Source
    GAS
    Limited Parts Warranty
    1 Years
    Water Connection Size
    4"
    ASME Certified
    Yes
    ASME Stamp
    H
    Destination Country
    US
    Fuel Source
    NATURAL
    Ignition Type
    Direct Spark
    Installation Type
    OUTDOOR
    Limited Heat Exchanger Warranty
    10 Years
    Minimum BTUs
    175,000
    Application
    COMMERCIAL
    Shipping Height
    95"
    Shipping Length
    105"
    Shipping Width
    49"
    Side Loop
    No
    Voltage
    208
    Dimension & Venting
    Type
    Boiler
    Shipping Weight
    3218 lbs
    Vent Type
    Room Air/Direct Vent/ Common Vent
