Product Details
- Delivers 129-gallon first hour rating
- 76,000 BTU input power direct vent design delivers up to 0.68 Uniform Energy Factor
- Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
- Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
- Glass tank lining protects against corrosion
- Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
- Automatic cleaning system protects against sediment build-up
- Stainless steel tank saver anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- 6-year limited tank and parts warranty

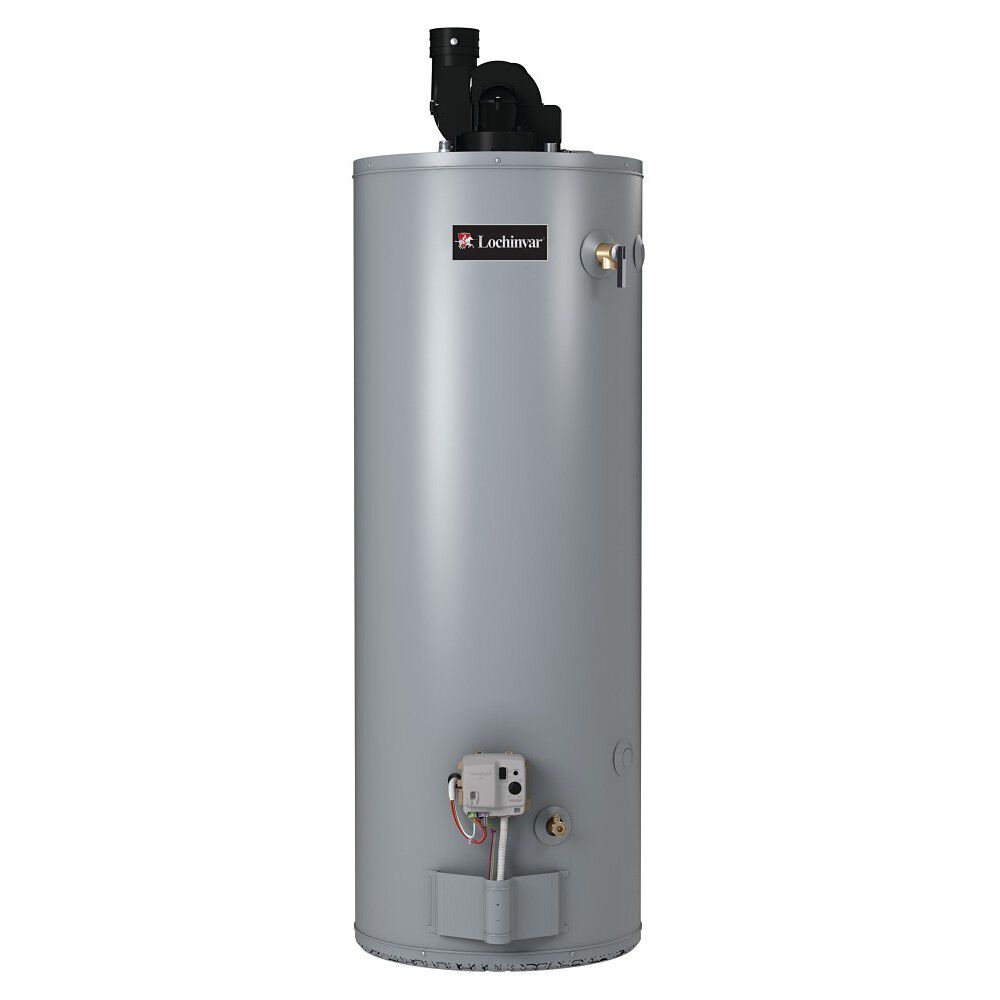

The 75-Gallon Power Direct Vent Liquid Propane Gas Water Heater features a two-pipe combustion system that draws clean air from outside the home, eliminating any worries about indoor ventilation.
Specifications
Tech Specs
Nominal Gallon Capacity
75 Gallons
Rated Storage Volume
72 Gallons
UEF
0.68
Thermal Efficiency
82%
Maximum BTUs
76,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Low NOx
First Hour Rating
129 Gallons
ASME Certified
No
Amperes
5
Blanket Included
No
Destination Country
US
Flue Diameter
5.00
Fuel Source
PROPANE
Height to T&P
53.00
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
72.25"
Shipping Length
35.2"
Shipping Width
27.38"
Side Loop
Yes
Voltage
120
Dimension & Venting
Type
Water Heater
Height
60"
Diameter
26 in."
Shipping Weight
280 lbs
Vent Type
Power Direct Vent
