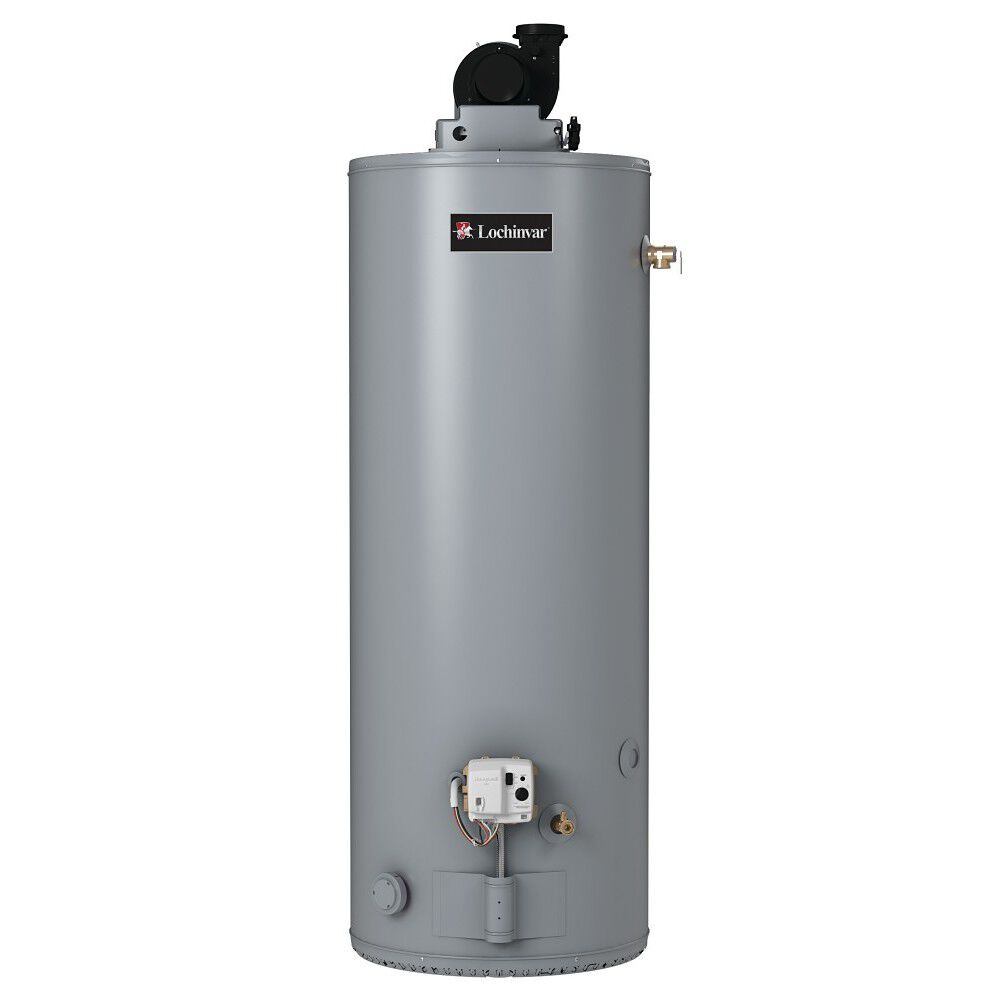

40-Gallon Power Vent Liquid Propane Water Heater

Model PVL04040 201
Capacity (Gallons)
Fuel Source
Maximum BTU's
Side Loop

  • Delivers 73-gallon first hour rating
  • 40,000 BTU input power vent design delivers up to 0.67 Uniform Energy Factor
  • Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • 40-Gallon Power Vent Liquid Propane Water Heater
    Model PVL04040 201
    Product Details
    • Delivers 73-gallon first hour rating
    • 40,000 BTU input power vent design delivers up to 0.67 Uniform Energy Factor
    • Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Glass tank lining protects against corrosion
    • Automatic cleaning system protects against sediment build-up
    • Stainless steel tank saver anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • 6-year limited tank and parts warranty

    • The 40-Gallon Power Vent Liquid Propane Water Heater is engineered to maximize efficiency while offering greater flexibility in installation options.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.67
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    Emissions
    Low NOx
    First Hour Rating
    73 Gallons
    ASME Certified
    No
    LEED Rating
    1.00
    Amperes
    5
    Blanket Included
    No
    Destination Country
    US
    Digital Display
    true
    Flue Diameter
    4.00
    Fuel Source
    PROPANE
    Height to Gas Valve
    13.25
    Height to T&P
    42.50
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    61"
    Shipping Length
    31.63"
    Shipping Width
    23.5"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    58.5"
    Diameter
    22 in."
    Shipping Weight
    174lbs
    Vent Type
    Power Vent
