Product Details
- Delivers 97-gallon first hour rating
- 50,000 BTU input power vent design delivers up to 0.72 Uniform Energy Factor
- Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
- Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
- Glass tank lining protects against corrosion
- Automatic cleaning system protects against sediment build-up
- Stainless steel tank saver anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- 6-year limited tank and parts warranty

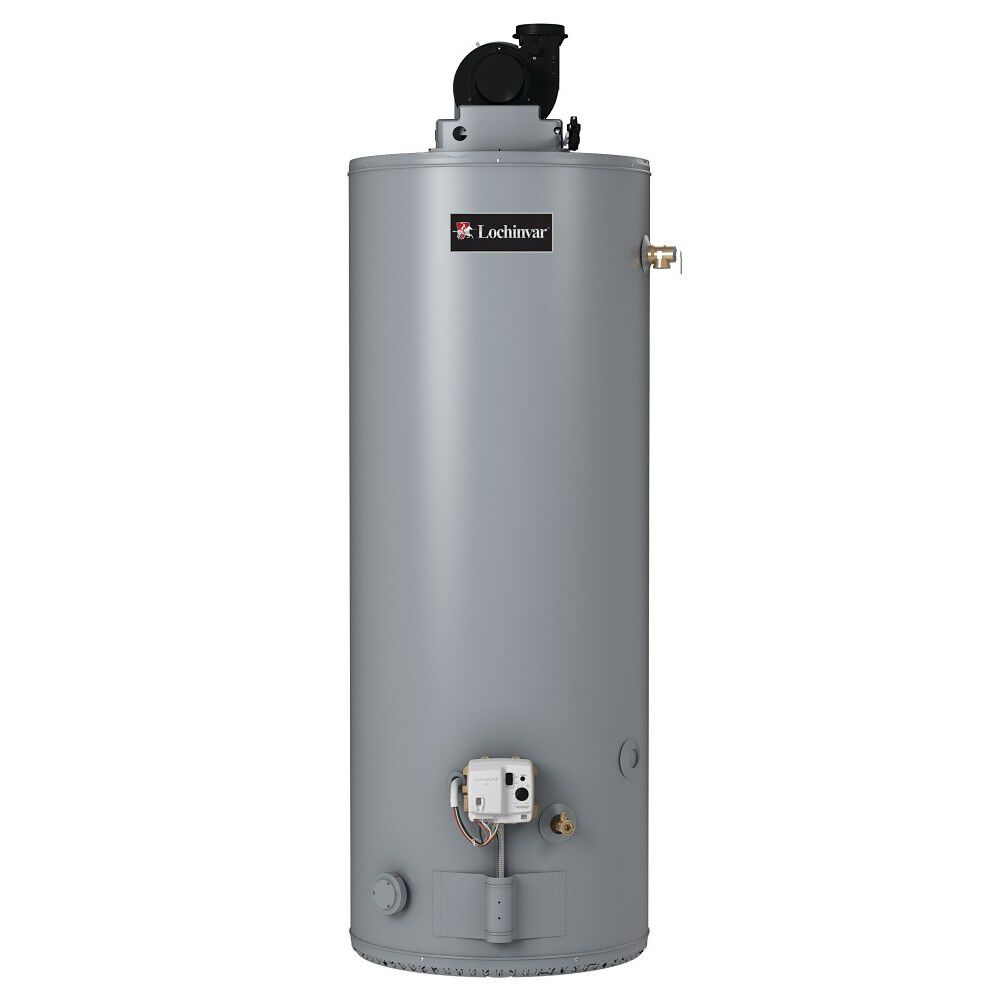

The 50-Gallon Power Vent Liquid Propane Water Heater is engineered to maximize efficiency while offering greater flexibility in installation options.
Specifications
Tech Specs
Nominal Gallon Capacity
50 Gallons
Rated Storage Volume
48 Gallons
UEF
0.72
Maximum BTUs
50,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
1"
Emissions
Low NOx
First Hour Rating
97 Gallons
ASME Certified
No
Amperes
5
Blanket Included
No
Destination Country
US
Digital Display
true
Flue Diameter
4.00
Fuel Source
PROPANE
Height to Gas Valve
12.00
Height to T&P
51.75
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
70.5"
Shipping Length
31.25"
Shipping Width
29.63"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
68.125"
Diameter
22 in."
Shipping Weight
192lbs
Vent Type
Power Vent
