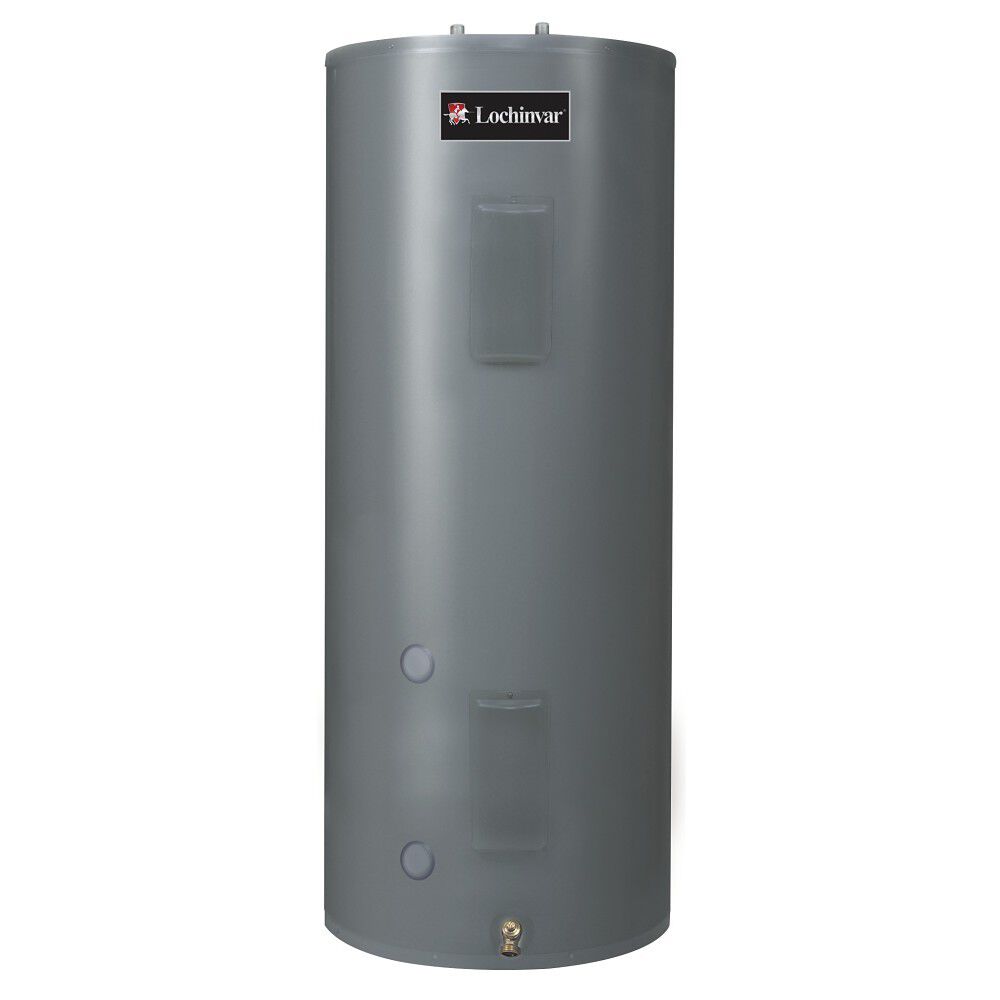

Product Details
- Non-CFC Foam Insulation - Superior material formulation provides uniform tank coverage with a thick blanket of insulating foam.
- Glass-lined Tank - The durable glass lining is fused to the tank
- Tank Saver Anode - A large diameter, high capacity anode inhibits corrosion of the tank interior for long, trouble-free service.
- Water Connections - Solar connections on top and side
- Temperature and Pressure Relief Valve - Factory installed
- Tank Sensor - Pre-wired for surface mounted temperature sensor
- Heating Element - 4500 watt immersion type heating element for heating system back-up
- Brass Drain Valve - Factory installed
- 6-Year Limited Tank & Parts Warranty
Specifications
Tech Specs
Nominal Gallon Capacity
76 Gallons
Power Source
ELECTRIC
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
Water Connection Location
TOP
ASME Certified
No
Destination Country
US
Max Wattage
4,500
Number of Elements
1
Application
RESIDENTIAL
Shipping Height
65"
Shipping Length
26"
Shipping Width
26"
Side Loop
No
Voltage
240
Dimension & Venting
Type
Water Heater
Diameter
24 in."
Shipping Weight
257lbs
