Product Details
- Continuous flow rate up to 8.0 GPM
- Primary commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
- Secondary heat exchanger is made of 316L Stainless Steel to protect against corrosion
- Highly efficient condensing Ultra-Low Nox tankless water heater delivers up to .94 Uniform Energy Factor (UEF)
- Flexible power direct vent design allows for venting up to 100 feet using either PVC, CPVC, polypropylene or ABS Pipe (solid core)
- Common vent up to 8 units
- Includes integrated temperature controls and advanced diagnostics to simplify troubleshooting
- Safety features include exhaust & water temperature safety control, overheat cut-off fuse and air-fuel ratio (AFR) sensor
- 15-year limited warranty on heat exchanger in residential applications

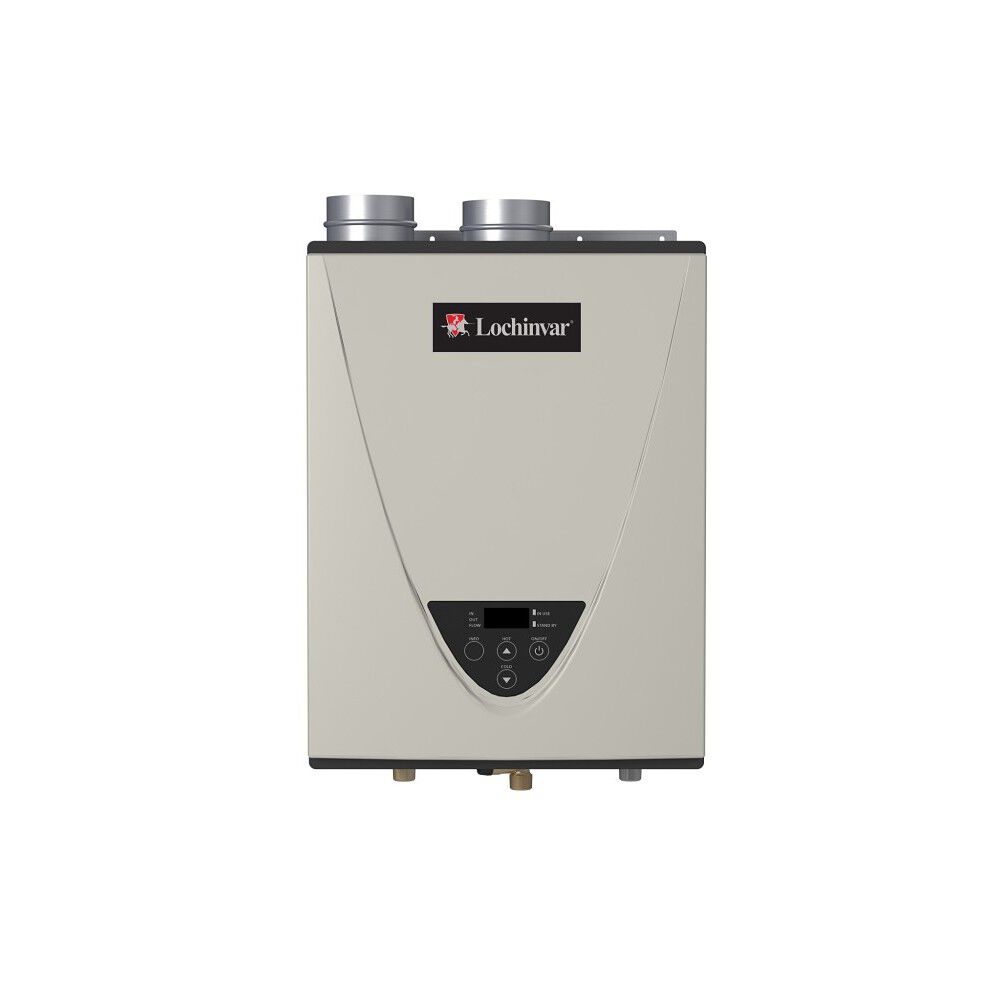

The 340H Series offers high efficiency Ultra-Low NOx condensing technology allowing for the use of 3” PVC venting and has 0” clearance to combustibles. Features copper primary and 316L stainless steel heat ex-changers to provide high efficiency operation and excellent corrosion resistance. Models are certified up to 10,100 ft. altitude. Complies with Ultra-Low NOx regulations and meets the energy efficiency requirements of ASHRAE 90.1b-1992.
Specifications
Tech Specs
UEF
0.95
Maximum BTUs
180,000
Power Source
GAS
Limited Tank Warranty
15 Years
Limited Parts Warranty
5 Years
Water Connection Location
BOTTOM
Emissions
Ultra-Low NOx
ASME Certified
No
LEED Rating
1.50
Destination Country
US
Digital Display
Yes
ENERGY STAR® Certified
Yes
Fuel Source
NATURAL
Installation Type
INDOOR
Limited Heat Exchanger Warranty
15 Years
Max Flow Rate
5.4 GPM
Minimum BTUs
15,000
Application
RESIDENTIAL
Shipping Height
33.25"
Shipping Length
21.75"
Shipping Width
15.625"
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
23.625"
Width
17.75"
Shipping Weight
70 lbs
Vent Type
Power Direct Vent
