Product Details
- ENERGY STAR® certified with a UEF of 0.95
- Flexibility in Installation—PVC venting flexibility (2” up to 50’ & 3" up to 150’); Install indoor or outdoor (outdoor kit sold separately)
- Save up to $116/year on operating costs—Compared to a standard 50-gallon atmospheric vent natural gas tank water heater
- Lasts 3x Longer—Integrated X3® Scale Prevention Technology provides protection for the heat exchanger

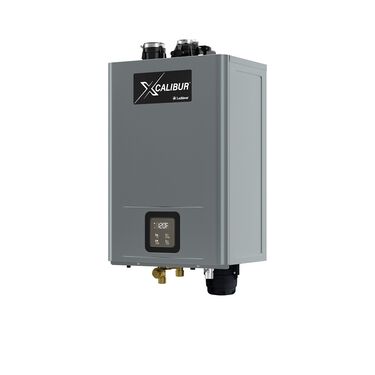

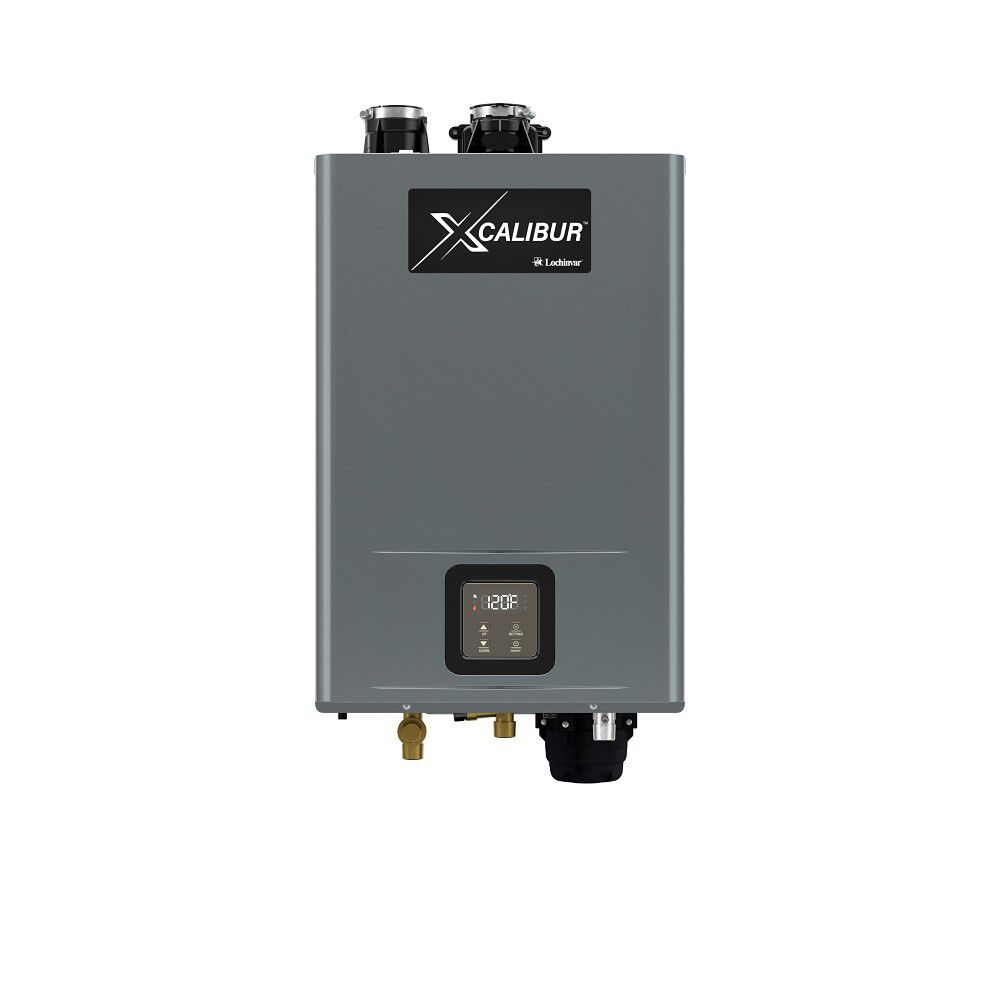

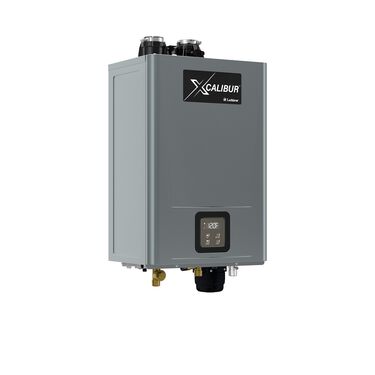

XCalibur™ standard condensing tankless water heater uses up to 160,000 BTUs of Natural Gas to deliver a max flow rate of 10.5 GPM. Lochinvar’s XCalibur™ tankless water heaters deliver robust, on-demand performance and the flexibility to install in virtually any residential setting.
Specifications
Tech Specs
Nominal Gallon Capacity
1 Gallons
UEF
0.95
Maximum BTUs
160,000
Power Source
GAS
Limited Parts Warranty
5 Years
Water Connection Location
BOTTOM
Water Connection Size
0.75"
ASME Certified
No
Amperes
5
Destination Country
US
ENERGY STAR® Certified
true
Flue Diameter
2.00
Fuel Source
NATURAL
Installation Type
BOTH
Limited Heat Exchanger Warranty
15 Years
Max Flow Rate
4.8 GPM
Minimum BTUs
10,000.00
Application
RESIDENTIAL
Shipping Height
17.38"
Shipping Length
39.25"
Shipping Width
22.13"
Side Loop
No
Vent Material
ABS, PVC, CPVC and polypropylene
Voltage
120
Dimension & Venting
Type
Water Heater
Height
32.46"
Width
17.12"
Shipping Weight
93lbs
