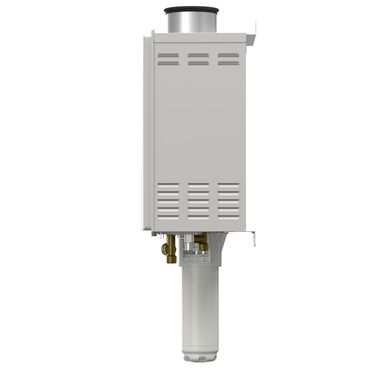

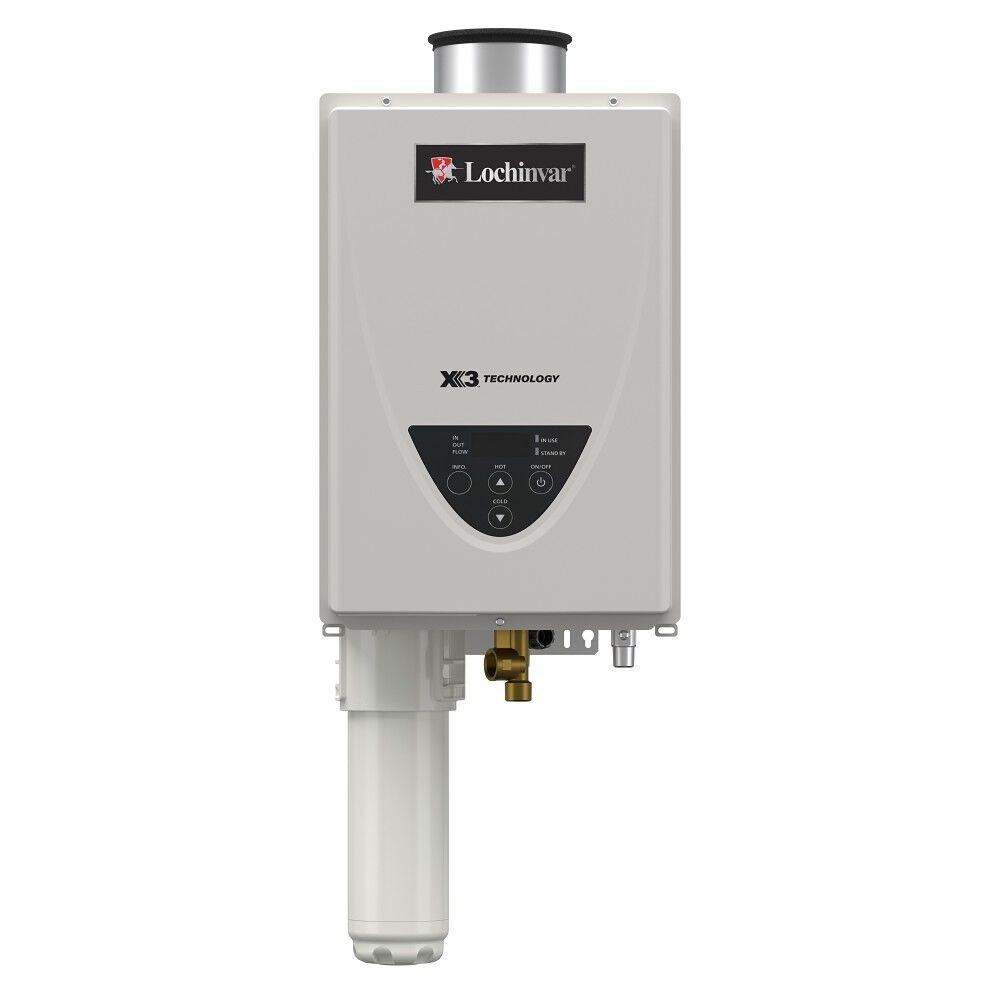

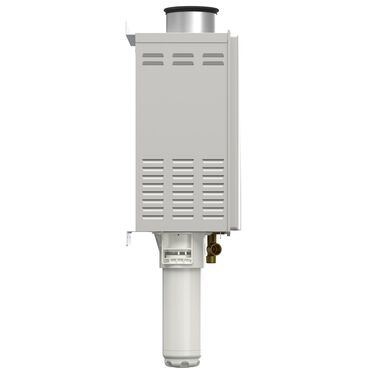

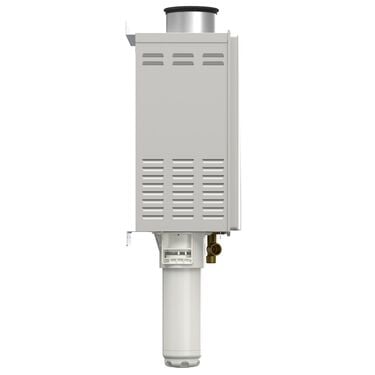

Concentric Vent Indoor 190,000 BTU Non-Condensing Natural Gas Tankless Water Heater with X3® Scale Prevention Technology

Model LTI-310CX3 110
Maximum BTU's

  • Continuous flow rate up to 8.0 GPM
  • X3® Scale Prevention Technology
  • Wall-mount design saves valuable space and allows for additional storage and flexibility
  • Concentric Vent Indoor 190,000 BTU Non-Condensing Natural Gas Tankless Water Heater with X3® Scale Prevention Technology
    Model LTI-310CX3 110
    Product Details
    • Continuous flow rate up to 8.0 GPM
    • X3® Scale Prevention Technology
    • Wall-mount design saves valuable space and allows for additional storage and flexibility
    • Commercial-grade copper heat exchanger is 25x better than stainless steel at heat transfer, stabilizing outgoing water temperatures quicker
    • Easily convertible from natural gas to propane
    • Highly efficiency tankless water heater delivers up to .81 Uniform Energy Factor (UEF)
    • Direct vent APNC35 concentric vent system, Vertical or Horizontal Vent Termination Installation
    • Includes integrated temperature controls and advanced diagnostics to simplify troubleshooting
    • Safety features include exhaust & water temperature safety control, overheat cut-off fuse and air-fuel ratio (AFR) sensor
    • 15-year limited warranty on heat exchanger in residential applications

    • Fully modulating, gas fired, tankless water heater with sealed combustion and power vented flue. Supplies hot water to domestic hot water systems (directly or indirectly) and can be used with water storage tanks, re-circulation systems (with use of a crossover valve), and/or combined domestic and heating applications.

    Specifications
    Tech Specs
    UEF
    0.81
    Maximum BTUs
    190,000
    Power Source
    GAS
    Limited Parts Warranty
    5 Years
    Water Connection Location
    BOTTOM
    Water Connection Size
    3/4-in"
    Emissions
    Ultra-Low NOx
    ASME Certified
    No
    Destination Country
    US
    Fuel Source
    MULTIPLE
    Ignition Type
    Electronic Hot Surface Igniter
    Installation Type
    INDOOR
    Limited Heat Exchanger Warranty
    15 Years
    Max Flow Rate
    4.6 GPM
    Minimum BTUs
    15,000
    Application
    RESIDENTIAL
    Shipping Height
    35.5"
    Shipping Length
    18"
    Shipping Width
    15.7"
    Side Loop
    No
    Voltage
    120
    Dimension & Venting
    Type
    Water Heater
    Height
    36.125"
    Width
    14"
    Shipping Weight
    62.6 lbs
    Vent Type
    Concentric Vent
