Product Details
- Delivers 62-gallon first hour rating
- 33,000 BTU input atmospheric vent design delivers up to 0.59 Uniform Energy Factor
- Ultra-Low NOX Gas Burner, meets or exceeds emission requirements in California & Utah
- Push-button piezo ignitor makes lighting pilot fast & easy
- Intelligent electronic gas control provides precise temperature control and LED status indicator
- Glass tank lining protects against corrosion
- Automatic cleaning system protects against sediment build-up
- Stainless steel anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- 6-year limited tank and parts warranty

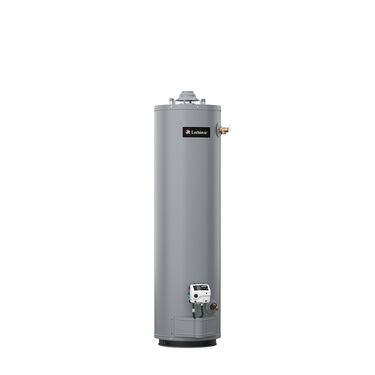

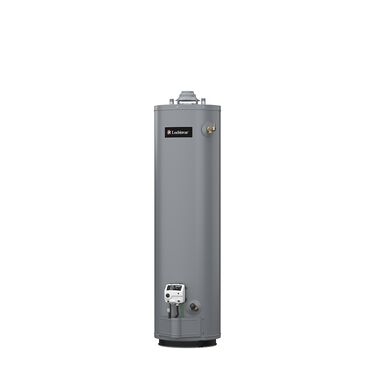

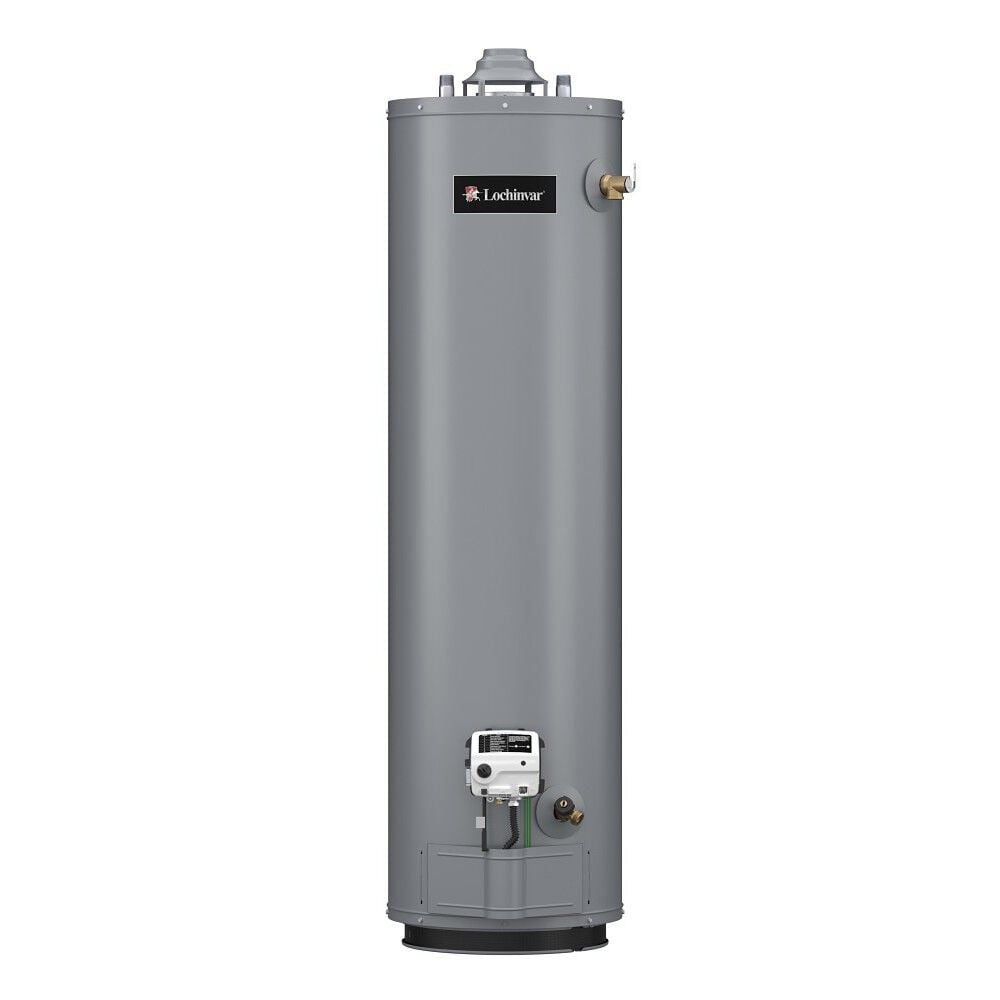

30-Gallon Ultra-Low Nox Atmospheric Vent Tall Natural Gas Water Heater delivers an efficient, reliable performance and features an innovative design that protects against accidental ignition of flammable vapors.
Specifications
Tech Specs
Nominal Gallon Capacity
30 Gallons
Rated Storage Volume
29 Gallons
UEF
0.59
Maximum BTUs
33,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
0.75"
Emissions
Ultra-Low NOx
First Hour Rating
62 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to T&P
52.00
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
61.56"
Shipping Length
22.63"
Shipping Width
17.13"
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
57.75"
Diameter
16 in."
Shipping Weight
126 lbs
Vent Type
Atmospheric Vent
Height to Gas Valve
13.25"
Product Literature
Sales Brochures
Parts Sheet
Archive
Warranty
Energy Guide
