Product Details
- Delivers 81-gallon first hour rating
- 75,100 BTU input atmospheric vent design delivers up to 0.58 Uniform Energy Factor
- Ultra-Low NOX Gas Burner, meets or exceeds emission requirements in California & Utah
- Fully automatic control system with safety shutoff, prevents excessive water temperature and requires no power
- Push-button piezo ignitor makes lighting pilot fast & easy
- Heavy gauge steel jacket for added durability
- Glass tank lining protects against corrosion
- Automatic cleaning system protects against sediment build-up
- Stainless steel tank saver anode rod protects against corrosion longer than ordinary anodes
- 6-year limited tank and parts warranty

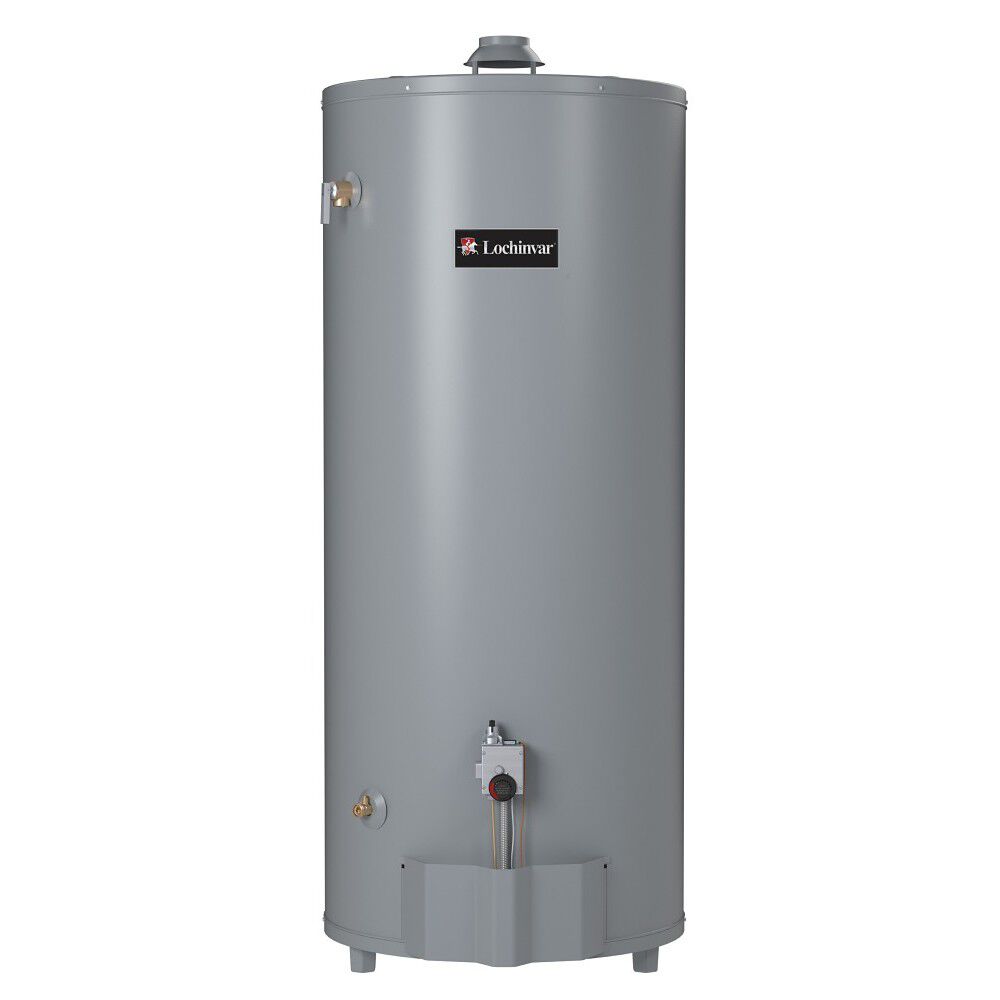

The 100-Gallon Ultra-Low NOx High Recovery Gas Water Heater is designed to deliver reliable hot water for large demands. It includes a fully autmatic controls for more accurate temperature control and requires no electrical connections. For added peace of mind, this model includes a fixed automatic safety gas shutoff device.
Specifications
Tech Specs
Nominal Gallon Capacity
98 Gallons
Rated Storage Volume
95 Gallons
UEF
0.58
Thermal Efficiency
80%
Maximum BTUs
75,100
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Size
1.25"
Emissions
Ultra-Low NOx
First Hour Rating
120 Gallons
ASME Certified
No
Blanket Included
No
Destination Country
US
Flue Diameter
5.00
Fuel Source
NATURAL
Height to Gas Valve
16.00
Height to T&P
58.75
Ignition Type
Pilot with Piezo Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
67.88"
Shipping Length
33.12"
Shipping Width
30.12"
Side Loop
No
Dimension & Venting
Type
Water Heater
Height
66.5"
Diameter
27.75 in."
Shipping Weight
322lbs
