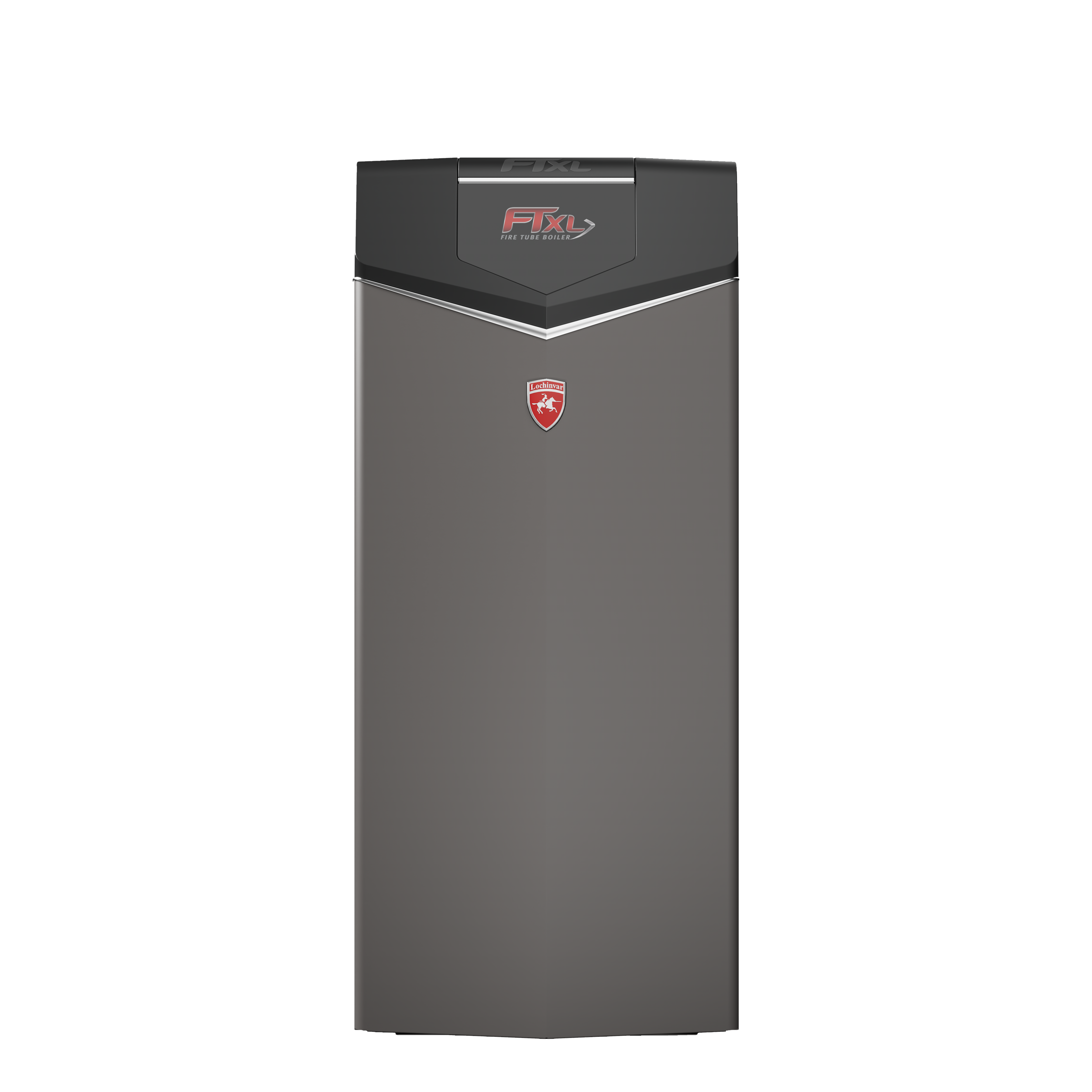

FTXL™ Fire Tube Boiler

Model FTX400L 120
Fuel Source
Maximum BTU's

  • 98.0 Thermal Efficiency
  • 10:1 Turndown Ratio
  • Stainless Steel Fire Tube Heat Exchanger
  • FTXL™ Fire Tube Boiler
    Model FTX400L 120
    Product Details
    • 98.0 Thermal Efficiency
    • 10:1 Turndown Ratio
    • Stainless Steel Fire Tube Heat Exchanger
    • Featuring CON·X·US® Remote Connectivity and SMART TOUCH™ Operating Control
    • Up to 100' Equivalent Vent Length
    • 7” Touch Screen
    • Flow Rates from 10 to 105 GPM
    • 10 Year Limited Warranty

    • For light commercial applications, the FTXL™ brings models from 399,000 to 999,000 Btu/hr, and takes Lochinvar’s fire-tube technology to the next level.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    13 Gallons
    Thermal Efficiency
    98%
    Maximum BTUs
    399,000
    Power Source
    GAS
    Limited Parts Warranty
    1 Years
    Water Connection Size
    2"
    ASME Certified
    Yes
    ASME Stamp
    H
    Destination Country
    US
    Fuel Source
    PROPANE
    Height to Gas Valve
    39.75
    Ignition Type
    Direct Spark
    Limited Heat Exchanger Warranty
    10 Years
    Minimum BTUs
    39,900.00
    Application
    COMMERCIAL
    Shipping Height
    64"
    Shipping Length
    29"
    Shipping Width
    38"
    Side Loop
    No
    Vent Material
    PVC, CPVC, Polypropylene, AL29-4C Stainless
    Voltage
    120
    Dimension & Venting
    Type
    Boiler
    Height
    53.375"
    Width
    26.5"
    Shipping Weight
    432lbs
    Vent Type
    Room Air/Direct Vent
