Product Details
- Delivers 74-gallon first hour rating
- 40,000 BTU input power direct vent design delivers up to 0.68 Uniform Energy Factor
- Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
- Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
- Glass tank lining protects against corrosion
- Automatic cleaning system protects against sediment build-up
- Stainless steel tank saver anode rod protects against corrosion longer than ordinary anodes
- Commercial-grade brass drain valve for durable and easy operation
- 6-year limited tank and parts warranty

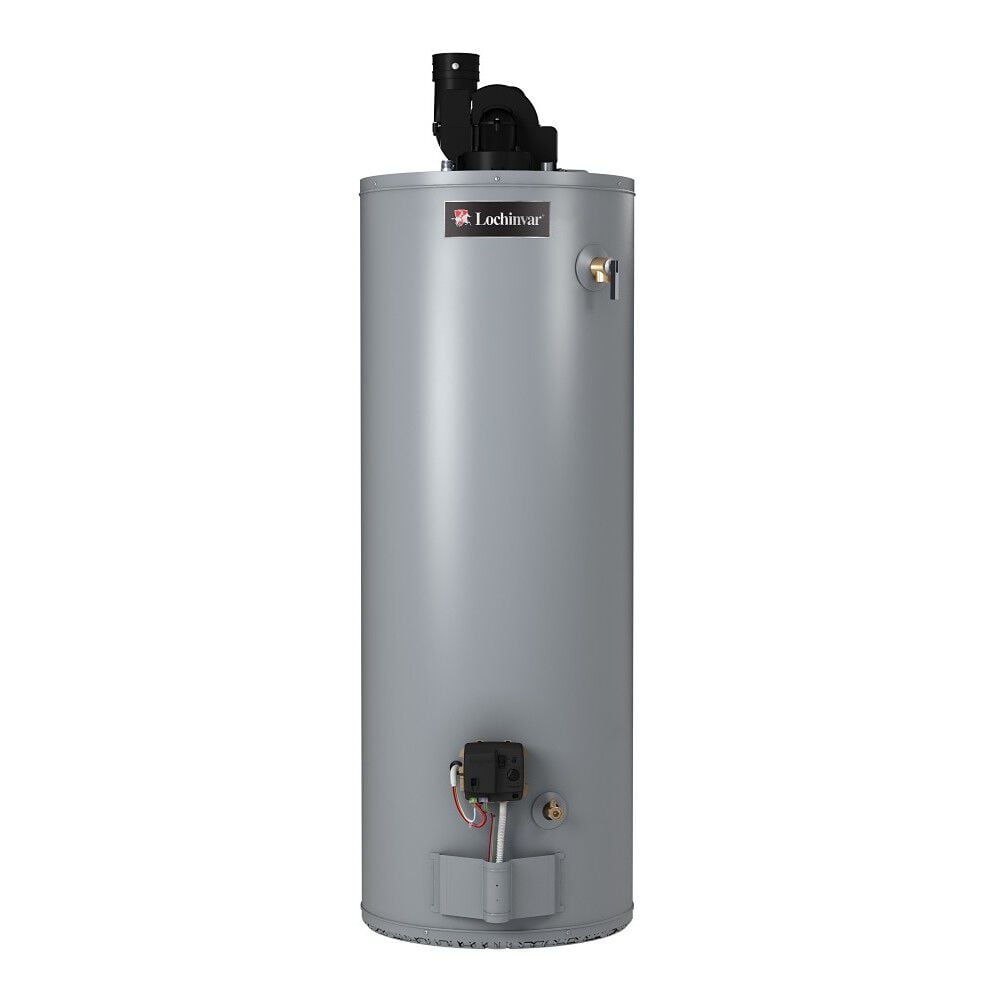

The 40-Gallon Power Direct Vent Natural Gas Water Heater features a two-pipe combustion system that draws clean air from outside the home, eliminating any worries about indoor ventilation.
Specifications
Tech Specs
Nominal Gallon Capacity
40 Gallons
Rated Storage Volume
38 Gallons
UEF
0.68
Maximum BTUs
40,000
Power Source
GAS
Limited Tank Warranty
6 Years
Limited Parts Warranty
6 Years
T&P Relief Valve
Yes
Water Connection Location
TOP
Water Connection Size
1"
Emissions
Low NOx
First Hour Rating
74 Gallons
ASME Certified
No
LEED Rating
1.00
Amperes
5
Blanket Included
No
Destination Country
US
Flue Diameter
4.00
Fuel Source
NATURAL
Height to T&P
42.50
Ignition Type
Electronic Hot Surface Igniter
Installation Type
INDOOR
Application
RESIDENTIAL
Shipping Height
60.56"
Shipping Length
31.2"
Shipping Width
23.4"
Side Loop
No
Voltage
120
Dimension & Venting
Type
Water Heater
Height
58.5"
Diameter
22 in."
Shipping Weight
177 lbs
Vent Type
Power Direct Vent
Height to Gas Valve
12"
